Advanced Energy - Model Artesyn - iHP, ...

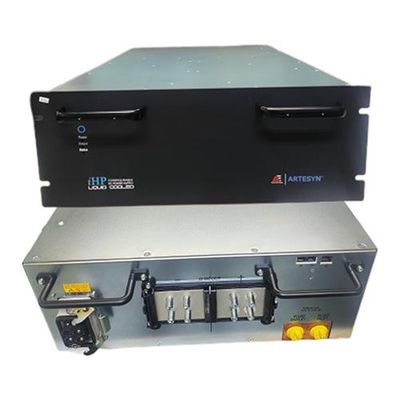

Advanced Energy - Model Artesyn - iHP, Liquid Cooled Series -Precision High Power System

FromAdvanced Energy Industries, Inc.

SHARE

Designed for a wide range of industrial, lighting/horticulture, and semiconductor applications, Advanced Energy’s iHP Liquid Cooled configurable precision power system provides accuracy, resolution and stability as either a programmable voltage or current source. It provides up to 20 kW in 3 kW increments and can be configured for up to 8 outputs using a wide variety of plug-in modules that address a large range of voltages and currents.

Most popular related searches

AC-DC power supply

DC power supply

power supply unit

power factor correction

100% digital control
Fast current slew rate up to 200 Hz
High line 432 to 528 VAC 3-phase
Analog Interface either 0-5 V or 0-10 V for both current and voltage
Outputs parallel up to 1600 A
Outputs series up to 1000 V
Semi F47 compliance only when operated at 480 VAC
Standard 19" rack

5 years manufacturer’s warranty
Multi output intelligent and modular high power system
Outputs program as voltage or current source
Flexible digital control interfaces
Field upgradeable firmware
Programmable slew rate
Active power factor correction
User defined command profiles
Very low total harmonic distortion (THD)

Output Power (W): 20000
Length (Inches): 29.8
Width (Inches): 17.6
Height (Inches): 7
Mounting Type: 19” Rack Mount
Minimum Output Current (A): 0
Maximum Output Current (A): 200
Output Voltage Range (V): 0.6 to 360 V
Minimum Output Power (W): 0
Maximum Output Power (W): 2000
Minimum Input Voltage (V): 0.6
Maximum Input Voltage (V): 528
Warranty (Years): 5
