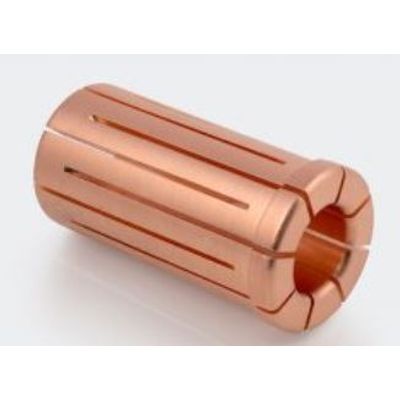

Coreinspire - Precision Milled Copper Collet

MATERIALS. FORM

• CDllO-ETPgradeCopper-05OmmBar

PRODUCT DIMENSIONS

• 0 40 mm X 90 mm Long with 0 48 mm X 5 mm Collar
• 16 Slits measuring 1mm wide X 75mm Long

DESIGNS INTRICACY

• The Collet has uniform 16 si its x lmm having length to slit ratio of 50:1 and Width to Thickness ratio of 7:1...
• Alternate slits are in opposite directions having close tolerances on positioning.
• The central hole boring followed by slitting is closely concentric to the OD of the component.
