Process-Technology - PFA, FEP, Fluoropolymer Heat Exchangers

SHARE

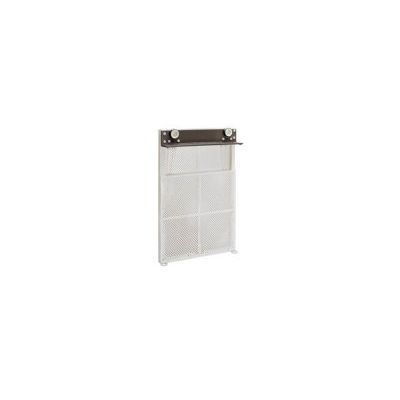

Excellent chemical compatibility. Rugged construction with perforated guards. Variety of sizes and configurations available.

Most popular related searches
heat exchanger
heating and cooling
mounting bracket

• Anti-floatation brackets.
• Special sizes.
• Special manifold configurations.
• L-shaped configurations for bottom heat applications.
• Dual coils for both heating and cooling.

  • SUPERIOR CHEMICAL RESISTANCE: For heating or cooling of most aqueous acid and alkaline solutions. Check solution guide or consult with your chemical supplier for proper sheath material selection.

  • RUGGED CONSTRUCTION:
    •  All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction.
    •  Heavy duty CPVC mounting bracket.
    •  1/8-inch thick perforated guard helps protect the coil from damage.

  • OUTSTANDING PERFORMANCE: Heavy wall tubing improves circulation and minimizes pressure drop.  Larger coils constructed of ½-inch (13mm) tubing, smaller coils have ¼-inch (7mm) tubing.

  • LEAK-FREE OPERATION: Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation.

  • PRESSURE RATING:
    •  Standard coils are made from FEP (Fluorinated Ethylene Propylene) and rated up to 30 PSI steam service.
    •  PFA (Perfluoroakoxy resin) coils are available for steam service up to 60 PSI.
    •  10 PSI minimum steam pressure required for operation.
    •  Consult factory regarding pressure reduced applications.

  • NON-CONDUCTIVE: Eliminates stray currents in the tank.

  • SIZES: 2.25 ft2 to 46.5 ft2 of exchange area standard.

  • NOTE: Vacuum breakers recommended for fluoropolymer heat exchanger steam heating installations. Please consult factory regarding pressure reduced steam applications.
