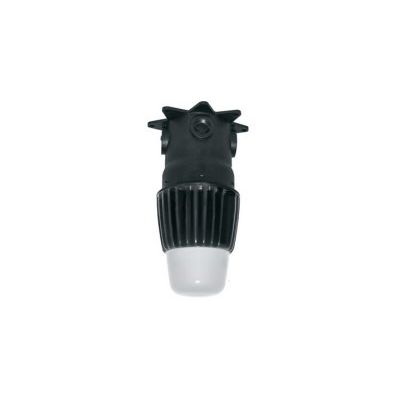

ProSeries - Led Utility Light Fixture

PROSERIES LED UTILITY LIGHT FIXTURE INCLUDES:

• LED Light Engine and Aluminum Heat Sink
• Junction Box

LED LIGHT ENGINE UPGRADE INCLUDES:

• LED Light Engine and Aluminum Heat Sink
• Adapter to mount a standard 4” Junction Box Silicone gasket
• Two (2) Screws

LUMEN OUTPUT

• Light Source: High power LEDs (±5%)
• Lumens: 1000 Min. (@.98 PF)
• Color: 5,000-5,400K
• Color Rendering Index (CRI): >82.

WIRING HARNESS

• Operating Voltage: 120 Volts only
• Ambient Operating Temperature: -20°C to 45°C.
• Total Harmonic Distortion (THD): <20%
• Emitters: 50,000+ hour life
• Dimmable: Down to 10% of rated output
• 75°C minimum supply wire required
• 3-Wire (Black, Neutral, and Ground) quick connect/disconnect with pre-stripped 3/8” (.375) leads.

• ETL Listed to UL Standard 1598 (tested).
• n Ceiling (wet location) or wall mount (damp location) LED Light Fixture. Suitable for use in wet location applications.
• 75-Watts of incandescent lumen output that consumes only 14-watts of electricity.
• Affordable LED lighting that provides dramatically better visibility.
• Reliable, durable, maintenance free performance.
• Optimal illumination, significant energy savings and virtually no luminaire maintenance.
• Eliminates ongoing replacement lamp cost when compared to incandescent or compact fluorescent lamps.
• Appropriate for use with all non-metallic wiring systems. n Labor Savings! Fast, simple installation reduces labor cost.
• 3-Year 50,000 - Hour Limited Warranty.

• 14-Watt LED Light Engine produces 1,000+ lumens.
• Dimmable down to 10% of rated output.
• UV resistant high impact polycarbonate lens protects LEDs and provides even light distribution.
• The cast-aluminum LED Light Engine’s Heat Sink is finished in a black “E” coat material that will not rust or corrode in the harshest environment.
• Silicone gasket protects against ingress of moisture and dust.
• Can be used where high-pressure wash down is required.

• Commercial and Industrial Facilities
• Agricultural Buildings
• Animal Confinement Areas
• Walk-in Refrigerators/Freezers n
• Tunnels, Corridors, and Walkways
• Athletic Areas
• Storage Buildings

• ProSeries Light Fixture Dimensions: 8.75” (222.25mm) H; Footprint (including Junction box): 5.5” (139.7 mm)
• LED Light Engine Dimensions (including Junction Box Adapter): 6.25 ” (158.75 mm) H
• Power Consumption: .12 Amps
• Power Factor: .98 (minimum)
