PSC Pressure Systems Company.
PSC - Gas/Propane Heated Systems

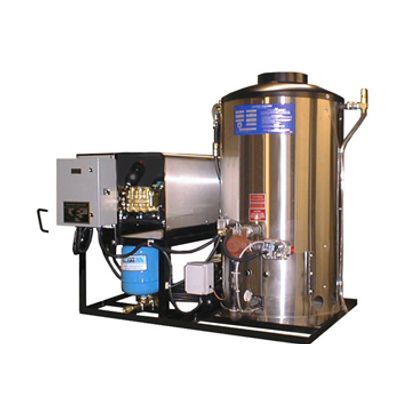

Natural Gas & Propane Fired Hot Water Pressure Washing Systems.
Most popular related searches
- CSA approved for use with Class B exhaust vent
- Belt-driven, oil bath plunger pump with thermo-probe protection and multi-gun pressure regulating valve
- Trigger gun activated, flow switch controlled auto start/stop system with solid state time delay shutdown
- Ideal centralized systems for multi-user applications
- Modulating gas thermostat control ensures steady temperature output up to 200?F
- 395,000 BTUH input rated heater with adjustable temperature controller and factory-set safety relief valve
- 3/4 in. schedule 80 heating coil with stainless steel wrap and 10 in. draft diverter
- Automatic Electronic Pilot Ignition (sparks to ignite gas when heater is activated)
- Belt-driven General ceramic plunger pump with thermal protection, adjustable pressure regulator and liquid-filled pressure gauge
- Modulating gas valve with adjustable temperature controller
- Large-capacity 3/4 in. I.D. schedule 80 heating coil with stainless steel wrap, draft diverter and safety relief valve
- Dual or single lance/gun(s) with 50 ft. x 3/8 in. high-pressure wash hose(s)
- Low-pressure (downstream) or high-pressure (upstream) chemical injection
| MODEL NO. | FLOW GPM | PRESSURE PSIG | MOTOR H.P. | FULL ~230V/1 PH |
LOAD ~208V/3 PH | CURRENT ~480V/3 PH | (AMPS) ~575V/3 PH | DIMENSIONS L" X W" X H" |
WEIGHT LBS. |
| ES411G40AEI | 4.0 | 1100 | 3 | 17 | 9.8 | 4.4 | 3.5 | 45/38/52 | 630 |
| ES420G40AEI | 4.0 | 1900 | 5 | 22 | 14.6 | 6.6 | 5.3 | 45/38/52 | 640 |
| ES429G40AEI | 4.0 | 2900 | 7.5 | 33 | 22.5 | 10.2 | 8.2 | 45/38/52 | 660 |
| ES543G40AEI | 5.4 | 3000 | 10 | -- | 29 | 13.1 | 10.5 | 45/38/52 | 670 |
| ES562G40AEI | 5.6 | 2000 | 7.5 | 33 | 22.5 | 10.2 | 8.2 | 45/38/52 | 660 |
| ES612G40AEI | 6.0 | 1200 | 5 | 22 | 14.6 | 6.6 | 5.3 | 45/38/52 | 640 |
| ES620G40AEI | 6.0 | 2000 | 7.5 | 33 | 22.5 | 10.2 | 8.2 | 45/38/52 | 675 |
| ES812G40AEI* | 8.0 | 1200 | 7.5 | 33 | 22.5 | 10.2 | 8.2 | 45/38/52 | 675 |
| ES820G40AEI* | 8.0 | 2000 | 10 | -- | 29 | 13.1 | 10.5 | 45/38/52 | 685 |
| ES830G40AEI* | 8.0 | 3000 | 15 | -- | 40 | 18.1 | 14.5 | 45/38/52 | 700 |
| ES1030G40AEI* | 10.0 | 3000 | 20 | -- | 55.2 | 24 | 20 | 45/38/52 | 880 |
* includes (2) 40 in. single lance gun assemblies, (2) 50 ft. x 3/8 in. high-pressure wash hoses
