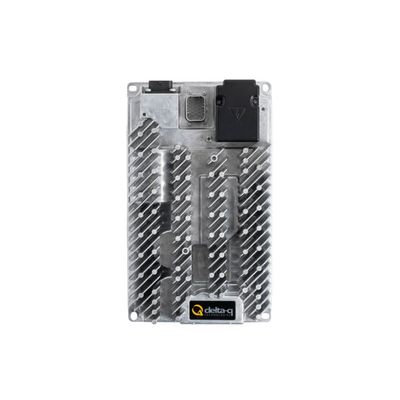

Delta-Q - Model ICL Series - Purpose-Built for Lithium Batteries
The ICL Series are reliable, compact, rugged, automotive grade chargers that are enhanced to charge 9S to 34S lithium battery packs optimizing battery life and application performance. Optimally charge lithium battery systems with any lithium-ion chemistry (e.g. LCO, NCA, NMC, LMO, LFP, LTO). Wide output voltage range to charge any lithium chemistry (LCO, NCA, NMC, LMO, LFP, LTO) in 9S to 34S pack configurations. CAN bus enabled for BMS controlled charge and vehicle telematics system integration with CANopen and J1939 protocols.
Stack up to six chargers to deliver up to 7.5 kW of power, offering OEMs flexibility to offer different charger power options and mounting flexibility allows for easy integration in compact vehicles.
The ICL Series can safely charge lithium battery chemistries through specifically designed algorithms, or via battery management system-controlled charging processes for chargers with communication capability (e.g. CAN bus).
UNECE R10 and voltage touch-safe compliant, the ICL Series provides original equipment manufacturers (OEMs) with flexibility in design and deployment.
Wide Output Voltage Range
Charge any lithium chemistry (LCO, NCA, NMC, LMO, LFP, LTO) in 9S to 34S pack configurations.
Robust and Impenetrable
Constructed for harsh industrial and automotive environments, the ICL Series chargers are tested to IEC60068-2-5 and GMW3172 moisture, salt, shock and vibration standards.
Stackable
Stack up to six ICL Series chargers to achieve up to 7.5 kW of power and charge medium to large battery packs of various chemistries and DC voltages of 58V, 85V and 120V.
Lithium Safety
Custom lithium algorithms provide the first line of safety for lithium battery charging and battery packs and BMS are tested and validated by experts in Delta-Q’s state-of-the-art battery lab.
System Integration
Flexible connectivity and software configurability speed up integration and configuration. OEMs can capitalize on extensive battery management system (BMS) support and expertise.
Universal Conformity
Compliance with UNECE R10 for electromagnetic compatibility on road vehicles and touch safe output voltage <60Vdc enables the vehicle to be serviced at all mechanic shops without specialized high voltage training.
