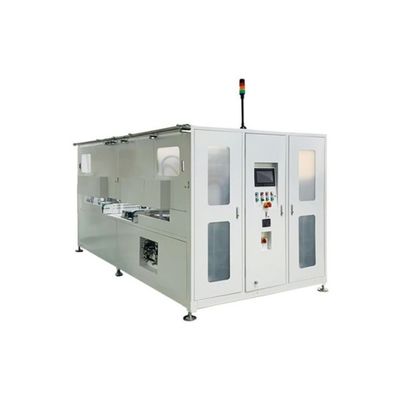

Jinchen - PV module Automatic Fitting Paper Corner Protector

SHARE

Good consistency, Firm and hard to loose or drop out. Compatible with various corner protector in different dimensions and materials. Packaging cycle time:  20s/module. Save 2 labors/shift.

Most popular related searches
solar module
photovoltaic module
solar equipment
  • Operation Power : AC 380V 3-phase 5-wire system of 50Hz
  • Operation Air Pressure : 0.6~0.8Mpa
  • Compatible module size : Length: 1650-2500mm * Width: 998-1400mm
  • Operating Noise : ≤72db
  • Height of production line : loading:960±35mm,unloading:960±35mm
  • Power :Rated Power : 7kW; Actual operating power : 0.8kW
  • Working cycle time : ≤20s
  • Air consumption : 300L/min
  • Equipment dimension : L3930mmW1850mmH1900mm
  • Main functions : It can automatically wrap the corner paper onto modules and distinguish the sizes of the corner paper, including the double-glass module without C frame. Frame Size 20-40mm, suitable for the corner paper with maximum size of 285x285 (L X W) mm.
  • Packaging mode : X,Y,Z linear module mechanism
  • Module conveying direction : Long side in and long side out
