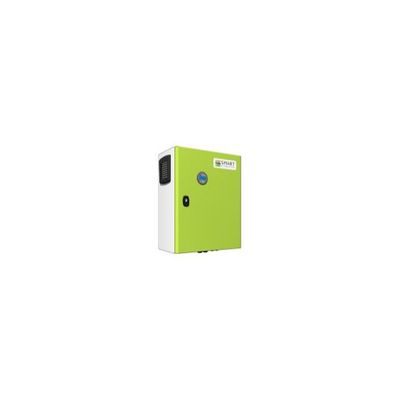

SEI - Model AC524 - PV Off-Grid System - Phoenix Power
Plug`n`Play off-grid cabinet solution (Made in Germany) for 230V AC power supply with inverter Victron Energy Phoenix 24/500 VE.Direct (500VA), MPPT charge controller Victron Energy BlueSolar MPPT 100/15 (15A/440Wp), battery monitor Victron Energy BMV-700 and 2.5m/16mm2 battery main cable set.
Most popular related searches
off-grid system
grid system
MPPT charge controller
battery monitor
circuit breaker
battery monitoring
charge controller
power supply inverter
mounting bracket
photovoltaic power
- Inverter : VE Phoenix 24/500 VE.Direct
- PV charge controller : VE BlueSolar MPPT 100/15
- Battery voltage : 24V
- Nominal AC power (25°C) : 0.5kVA/230V(1-ph)
- Max. PV power : 0.4kWp
- Number of MPPTs : 1
- Max. PV input voltage : 100V
- Housing : IP54 wall-mounted cabinet from powder coated steel plate incl. wall mounting brackets
- Monitoring : battery monitor VE BMV-700
- AC fuse IN/OUT : 6A circuit breaker type B
- DC battery fuse: Circuit breaker (60V DC) 25A (PV charger) / 40A (inverter)
- Weight : 19kg
- Dimensions (wxhxd) : 400mm x500mm x200mm
