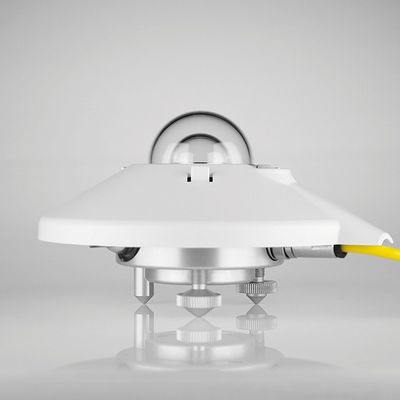

Kipp & Zonen - Model SMP11 - Pyranometer
The SMP11 smart pyranometer combines class leading sensor technology with industry standard digital and analogue amplified outputs. Based on the proven CMP 11 technology, the SMP11 adds Modbus® interface, improved response time and temperature corrected measurement data. The wide and low power supply range from 5 to 30 VDC makes integration in meteorological stations easy. The SMP is protected against over voltage, reversed polarity and short circuiting. Because all SMP’s have identical sensitivity and connections, exchanging instruments for recalibration is easy. PC Software for data logging, display of data and Modbus® address setting is standard provided. SMP11 measures incoming global solar radiation with a 180 ° field of view. It is ideal for solar radiation measurements in both Meteorological and Solar Energy applications that require the Modbus protocol or amplified outputs.
ISO / IEC classification
ISO 9060 spectrally flat Class A, with ISO / IEC 17025 calibration.
Minimized maintenance
Best MTBF with 5 years warranty.
Smart interface
Modbus RTU interface, wide temperature correction range and very low power consumption. Both digital and analog output
Technical Attributes
- Analog Outputs: 0 - 1 V (V-model) or 4 - 20 mA (A-model)
- Cable Length: 33, 82, 164, 330 ft (10, 25, 50, 100 m)
- Classification: Spectrally Flat Class A (ISO 9060:2018)
- Digital Outputs: Modbus RTU 2-wire RS-485
- Directional Response: ˂ 10 W/m² (up to 80 ° with 1000 W/m² beam)
- Drying Cartridge and Maintenance Interval: External, replacement after approx. 6 months
- IP Rating: IP68
- Irradiance Saturation: 4000 W/m² (Max.)
- Material Enclosures: Aluminum, anodised
- Non-linearity: ˂ 0.5 % (0 - 100 W/m²)
- Non-stability: ˂ 0.5 % (change/year)
- Operating Humidity: 0 - 100 %
- Operating Temperature Range: -40 - +176 °F (-40 - +80 °C)
- Response Time: ˂ 0.7 s (63 %), ˂ 2 s (95 %)
- Sensitivity: N.A.
- Spectral Accuracy: 285 - 2800 nm
- Temperature Correction: ˂ 1 %: -4 - +122 °F (-20 - +50 °C)
- Weight: 1.3 lb (600 g)
- Zero offset A: ˂ 7 W/m²
- Zero offset B: ˂ 2 W/m²
