Heyco

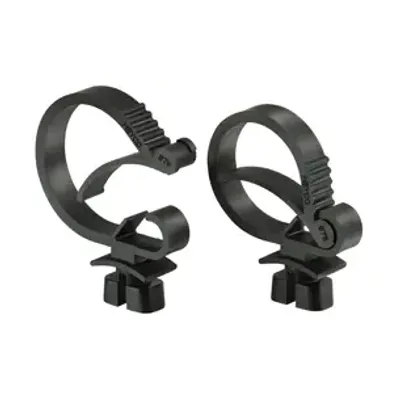

Heyco - Model SBC QTM Series -Quarter-Turn Mount Wire Clips
FromHeyco
Simple application by hand with quick twist 90° swivel for friction fit, hold in place with high pull-out retention. Simply twist to remove for routing and location adjustment. Wide cable diameter range handles multiple applications. Releasable and reusable. Secure clamping will not release easily. Locking feature prevents twisting apart. Material choices cover a number of application requirements for flammability and temperature. All new Quarter-Turn Mount #3 style (QTM-3), designed to work with popular IronRidge and Unirac solar racking systems.
Most popular related searches
- Could be used in any 3/8˝ T-Slot racking or rail system from other manufacturers.
- All new Quarter-Turn Mount #2 style (QTM-2), designed to work with popular IronRidge and Unirac and Small Solar Stack solar racking systems.
- QTM-2 could be used in any 1/4˝ T-Slot racking or rail system from other manufacturers.
- All new Quarter-Turn Mount #5 style (QTM-5), designed to work with popular large Solar Stack racking systems.
- QTM-5 can also be used on Powermation racking for industrial automation and robotics workstations.
- QTM-5 could be used in any 1/2˝ T-Slot racking or rail system from other manufacturers.
- Materials: Nylon 6/6, Heat Stable / UV Stable
- Flammability Rating: UL 94 V-2
- Temperature Range: -40°F (-40°C) to 239°F (115°C)
