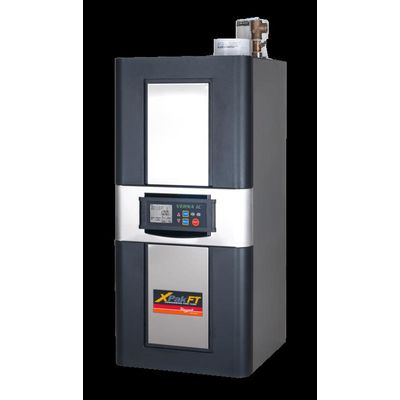

Raypak - Model XPakFT -Hydronic Boilers
FromRaypak, Inc.
Raypak is pleased to offer a wall mount, modulating, fire-tube heating boiler for commercial and residential. All XPakFT® models operate with extremely low NOx emissions, turndown of up to 10:1 and when mounted have virtually no installed footprint providing all the flexibility you’ve come to expect from Raypak.
Most popular related searches
Model Number
Full Input in BTUH
Vent Dia.
88AR85,0003"108AR110,0003"198AR199,0003"278AR275,0003"398A399,0004"
- 95% AFUE (96% TE - 398A).
- All stainless steel construction.
- ASME-certified firetube heat exchanger with National Board approval.
- Cascade control of up to 8 units, no external sequencer required.
- Cascade in parallel or sequential modulation modes.
- Available for natural gas or propane.
- Meets SCAQMD rule 1146.2 for 2012.
- Indoor construction only.
- Direct vent capable.
- Acceptable cat IV vent materials: PVC/CPVC, stainless steel, Duravent® polypropylene.
- Compatible with Building Management Systems using 0-10VDC input or Modbus RTU.
- Optional Z-12 Condensate Neutralizer kit treats acidic condensate onsite.
- BACnet or LonWorks interfaces available with optional external controller.
