GenII - Model SC250 - Receiver / Logger

SHARE

The SC250 is the hub of the secure logging system, for use with Eltek`s Darca Secure software. It is not necessary to have a permanently connected PC and the built-in battery means data logging is not interrupted if there is a temporary AC supply failure. Alarms are included as standard (SMS and local) and include grouping so that alarms for individual departments can be configured.

Most popular related searches
DC power supply
battery backup
AC-DC power supply
battery materials
The UHF flexi/SMA standard quarter wave whip antenna and LW-ANT/SMA antenna have a similar performance profile; but the LW-ANT/SMA can be used when the logger is required to be placed inside a screened cabinet, or better reception can be achieved by placing the antenna in a particular location where it would not be practical to locate a logger.Yagi directional antennae are useful in outdoors applications for achieving a longer distance between the transmitter and receiver. Please note that in the UK, these antennae should only be used with a logger or receiver; please check your local regulations if you are outside the UK.

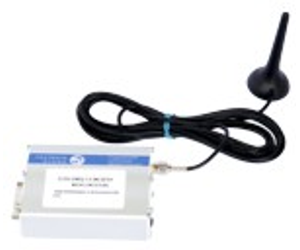

GSMSQ

GSM Modem kit (logger / receiver side)

The kit consists of the following:

  • Wavecom Xtend modem
  • Mounting tabs
  • Logger to modem lead (type GSM-mdm-com2X)
  • Antenna with 1.8m lead
  • SMA connector
  • User instructions

When installed, access to the Squirrel can be achieved via a GSM network.
A SIM card from the Network Service Provider is required.
The kit is necessary for text messaging functionality.

GSMPC

GSM Modem kit (PC side)

The kit consists of the following:

  • Wavecom Xtend modem
  • Antenna
  • Modem to PC serial lead (type LC-PC/MDM)
  • AC to 12V DC power supply (type MPGSMextend)
  • User instructions

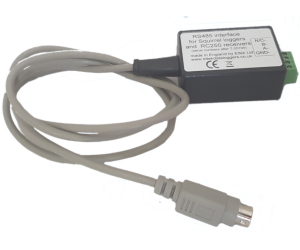

SQ/RS485

RS232 to RS485 interface converter

This unit converts the standard RC250 or Squirrel RS232 interface to a RS485 interface; thereby allowing equipment with the RS485 interface to communicate with the receiver/logger.

  • Allows much longer cable lengths than RS232 - RC250/Squirrel can be further away from the PC or other connected equipment
  • All RC250 units (after serial number T-25194) are compatible with this device

If you require a new logger to work with this interface, please specify at the time of ordering. Existing loggers may need a firmware update to work with the RS485 interface - please contact Eltek for advice.

Squirrels using this interface must be mains powered.

  • Number of channels: Up to 250
  • Number of transmitters: Up to 125
  • Ambient temperature: -10 to +55°C
  • Humidity: Up to 95% (non condensing)

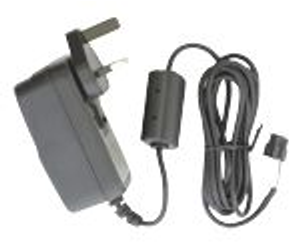

  • Power supply: 12V DC at 500mA powered using type MP12U, (input 100-250V AC)
  • Built-in batteries: 6 x AA Ni Mh battery
  • Backup battery life: Typically 24 hours
  • Memory: 247,000 readings expandable to 2,000,000
  • Clock accuracy: 1 second/day at 20°C
  • Dimensions: D 60mm x W 180mm x H 120mm
  • Weight: 1Kg inc. batteries
  • Case material: Scratch resistant Nextel coated ABS
  • PC/modem interface: RS232C up to 38.4K Baud
  • Receiver: Crystal controlled
  • Sensitivity: UHF: -117dBm
  • Antenna connector: SMA 50 ohm female
  • Antenna: Quarter wave standard, lightweight dipole optional
  • Communication options: USB, GSM, Ethernet, internet and GPRS
  • Alarm: SMS + 1 contact closure
