Capital Coil & Air - Replacement Tube Bundles

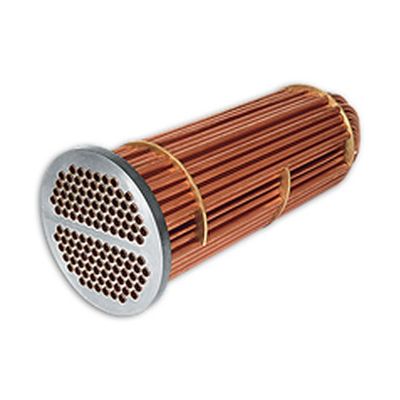

Capital builds replacement tube bundles for water/water exchangers and steam/water exchangers. We can duplicate the bundle diameter, length, tubesheet, and bolt hole pattern. You slide the old bundle out and slide the new bundle in without a lot of extra work on the jobsite. Special materials are available for high pressure steam, boiler water, or high temperature hot water. Capital Coil & Air replacement "U" tube bundles are designed for a maximum working pressure of 150 psig and temperatures to 375F degs. All bundles are hydrostatically tested to assure quality. Tube bundles for heat exchanger equipment can be constructed for liquid-to-liquid or steam-to-liquid applications. The bundles can be used for applications including industrial processes and commercial water heating or cooling. The tube bundles are built from 10- or 20-gauge copper or cupronickel tubes, carbon steel, or brass tube sheets. The tube bundles are available with a lead time of about 10 working days.
