Soltection - Model RF-4 -Residential Combiner Box

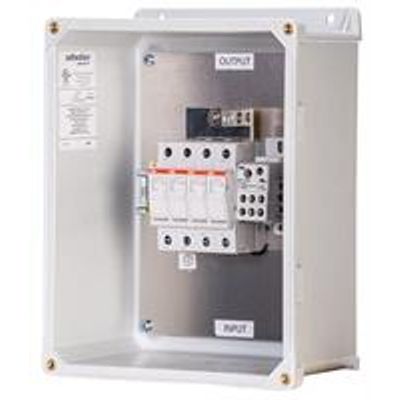

Model RF-4 combiner box that can handle four strings. The box combines and fuses four positive inputs and combines four negative inputs to a single positive output and negative output.
Most popular related searches
Electrical:
- Maximum Voltage: 600 V
- Maximum Current: 120 A
- Maximum Fuse Size: 30A
- Input Wire Size (Positive and Negative): #14 - #6 AWG
- Output Wire Size (Positive and Negative): #6 - #2 AWG
- Max Operating Temperature: 50°C
Enclosure:
- Material: Fiberglass Reinforced Polyester (FRP)
- Outer Dimensions (H x W x D): 11.32” x 9.32” x 5.39”
- Inner Dimensions (H x W x D): 10” x 8” x 5.1”
- Environmental Rating: NEMA 4X
- Weight: 6.3 lb
