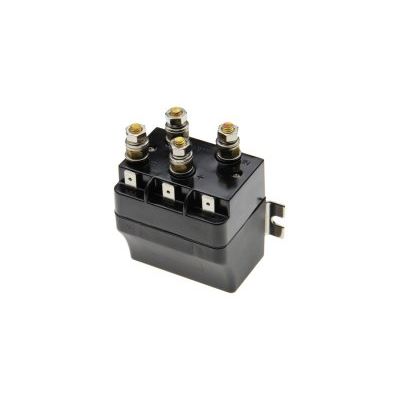

Model 100 AMP, 12 VDC - Reversing Contactor
Reversing polarity contactor. Ideal for controlling permanent magnet motors. Both output terminals rest at ground for dynamic braking in de-energized state. Will handle 100 AMP loads and a 25% duty rating.
Most popular related searches
Contact Type: DPDT
Maximum Current: 100A
Inrush Current: 200A
Maximum Switching Voltage: 12V
Life Cycle: 10,000 Cycles
Duty Cycle Percentage: 25%
Maximum On Time: 15 Minutes
Thermal Operation: 145°C
Pull in Voltage: 10.3V
Drop out Voltage: 6.0V
Coil Resistance: 7.1 - 8.9 Ohms (before use)
Contact Material Type: Silver Alloy
Maximum Operation Time: 10ms or less at rated voltage
Release Time: 10ms or less at rated voltage
Min. Operating Voltage and Current: 10.3V 5A
Inrush Current: 200A
