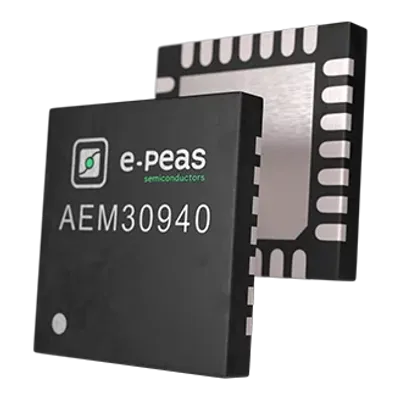

e-peas - Model AEM30940 -RF Energy Harvesting IC Solution
E-peas’ RF energy harvesting IC solution – AEM30940 – is an integrated energy management subsystem that extracts DC power from ambient RF signal to simultaneously store energy in a rechargeable element and supply the radio frequency energy harvester with two independent regulated voltages. This allows product designers and engineers to extend battery lifetime and ultimately get rid of the disposable battery in a large range of wireless recharge, industrial monitoring, home automation, etc.
- VIN : 50 mV to 5 V
- COLD START : -19 dBm
- PIN : -19 dBm to 10 dBm
- POUT : 20 mA @ 1.2/1.8 V and 80 mA @ 1.8-4.1 V
- SOURCE REGULATION : MPP Tracking
- PACKAGE : QFN 28 5 x 5 mm
Ultra-low-power start-up:
- Cold start from 380 mV input voltage and 3 µW input power (typical)
- RF input power from -18.5 dBm up to 10 dBm (typical)
Ultra-low-power boost regulator:
- Open-circuit voltage sensing for MPPT every 0.33 s
- Configurable MPPT with 2-pin programming
- Selectable Voc ratios of 50, 65 or 80%
- Input voltage operation range from 50 mV to 5 V
- MPPT voltage operation range from 50 mV to 4.5 V
- Constant impedance Matching (ZMPPT)
Integrated 1.2/1.8 V LDO regulator:
- Up to 20 mA load current
- Power gated dynamically by external control
- Selectable output voltage
Integrated 1.8 V-4.1 V LDO regulator:
- Up to 80 mA load current with 300 mV drop-out
- Power gated dynamically by external control
- Selectable or adjustable output voltage
Flexible energy storage management:
- Selectable overcharge and overdischarge protection
- For any type of rechargeable battery or (super)capacitor
- Fast supercapacitor charging
- Warns the load when the battery is running low
- Warns when output voltage regulators are available
Smallest footprint, smallest BOM:
- Only seven passive external components
Optional primary battery:
- Automatically switches to the primary the battery when the secondary battery is exhausted
Integrated balun for dual-cell supercapacitor
