HiLight - RF Power-Delivery Systems
From Plasma Power Generators - RF Plasma Generators

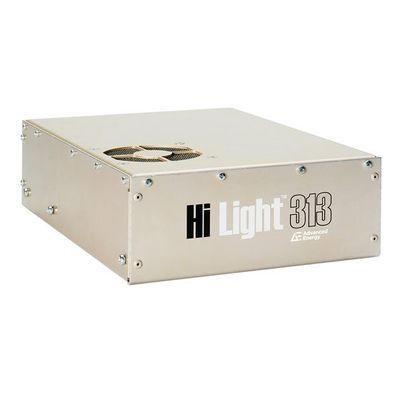

A Compact, Economical, Easy to Install, Low Power RF Platform. Compact, lightweight, and air-cooled, HiLight™ RF generators are ideal for low-power, on-board applications, suiting 13.56 MHz plasma and 1 or 2 MHz processes.
-
Most popular related searches
Economical
- Economical
- Flexible, single-phase input
- Compact design
Designed for use with 230 VAC, single-phase input power, the HiLight™ generators provide up to 600 W into a 50 Ω, non-reactive load. HiLight RF generators provide accurate power regulation and incorporate internal protection limits that enable safe and reliable operation. The RF generators are compact and lightweight, permitting you to mount directly on the tool or chamber. HiLight generators are controlled via a 25-pin analog user port.
Benefits
- Easily install in non-19' rack mounts
- Increase accuracy and reliability with wave or pulsing modes
Features
- Compact, lightweight shoebox design
- Air cooling
- Wave and pulse mode
- Phase synchronization (CEX) and pulsing
- Analog user port
