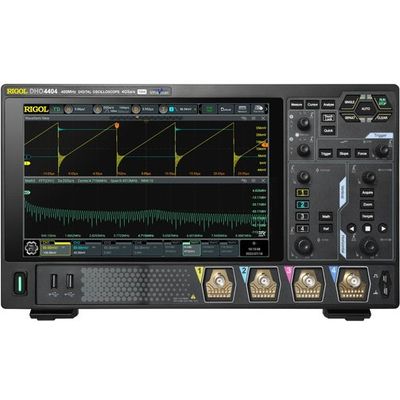

Rigol - Model DHO4000 -4-Channel, 12bit High-Resolution Oscilloscopes

SHARE

Rigol DHO4000 4-Channel, 12 bit High-Resolution Oscilloscopes up to 800 MHz.With a new chipset "Centaurus" developed by Rigol, the DHO4000 series offers a family of digital oscilloscopes for design, debugging, and testing. The oscilloscopes achieves a fast waveform capture rate of 1,500,000 wfms/s with the UltraAcquire mode, 500 Mpts memory depth, 12 bit vertical resolution, all combined with excellent noise floor performance and vertical accuracy to meet your requirements for more accurate measurements.

  • 4-channel (and 1 EXT channel) oscilloscope with 200 MHz, 400 MHz, or 800 MHz analog bandwidth.
  • Chipset "Centaurus" developed by Rigol.
  • Ultra-low noise floor at 18 µVRMS in minimum.
  • 12 bit vertical resolution, 16 bit in high resolution mode.
  • Up to 4 GS/s real-time sample rate.
  • Max. memory depth 250 Mpts, optional 500 Mpts.
  • Min. vertical sensitivity 100 µV/div.
  • Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode.
  • 10.1"/25.7 cm 1280x800 HD touch display and HDMI video output.
  • User-friendly Flex Knobs, bringing smoother interaction.
  • Standard photoelectric encoder operating knobs, effectively prolonging its service life.
  • Standard USB 3.0 host and device, LAN/Ethernet interfaces.
  • Optional battery pack in a highly portable package for unlimited freedom.
  • Support online version upgrade.

Benefits of the DHO4204, DHO4404, DHO4804 High-Precision DSOs with up to 4 GS/s Sample Rate and Ultra-Low Noise Floor

  • Digital oscilloscopes with 4 channels, 12 bit resolution, up to 800 MHz bandwidth.
  • Up to 4 GS/s sample rate, 1,500,000 wfms/s with UltraAcquire mode.
  • Deep memory, wide touch screen and variaty of interfaces.
