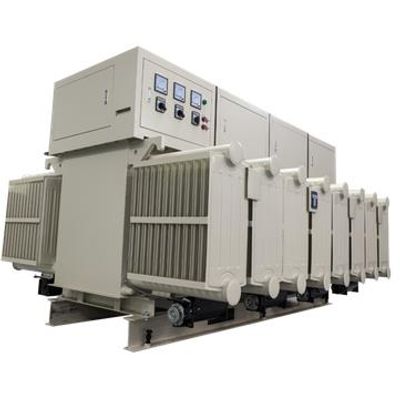

Ashley-Edison - Model IVSI-H-3P4Wire - Robust Magnetic Induction Stabilisers
This highly robust magnetic induction design is ideal for some of the world’s most challenging environments. Far exceeding industrial standards, the IVSI Series Automatic Voltage Stabiliser delivers maximum reliability, making it the Gold Standard in power protection.
Boasting a massive capacity range, our custom built Magnetic Induction Automatic Voltage Stabilisers cater up to 3,000KVA loads along with a wide input swing of up to ±30% voltage tolerance.
A maintenance-free solution.
Ashley Edison Magnetic Induction Voltage Stabilisers utilises a rotor and stator design principle to amplify or reduce the magnitude of the voltage in a series transformer winding, regulating and maintaining a constant output voltage. This concept results in a highly reliable and virtually maintenance-free voltage stabilisation solution.
Significantly enhances performance and cooling efficiency for industrial-grade voltage regulation and power protection.
For the load-balanced 3 Phase 3 Wire systems, the IVS Magnetic Induction Series is an ideal economical option and also in terms of physical size, a highly compact solution.
From ±10% up to ±30% input voltage swing.
Ideal for loads with an inherent initial high current draw on startup.
Output voltage accuracy ±1.5%.
Audible alarm in the event of phase failure or reversal.
Protects loads against harmful high-energy surges, transients and spikes.
Ability Audible alarm in the event of the supply voltage going outside the input voltage window.
Protection against extremely high voltage surges and transients caused by lightning strikes on the supply line.
Independent Phase Control
- Input & Output Voltage:
380V / 400V / 415V - Indoor IP20Enclosure
