Mansell and Associates - Model SuperMelt -Rotary Furnace System
We have developed and patented the "SuperMelt" rotary furnace system which incorporates our proven design of a Rotary / sweat furnace that will melt any type of scrap or dross and seperate the molten metal from solids or salt. This Rotary furnace is mounted on a tilting frame with a SWIVEL BASE that allows the furnace to swivel 350 degrees around the perimeter of the base to pour to various locations to reduce cycle time up to 35%. These Furnaces are designed for a Twenty year life span, built very heavy duty, and require very little maintenance.

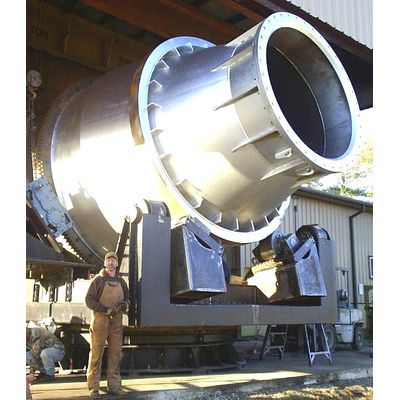

Rotary Furnace on SWIVEL Base "SuperMelt" Rotary Furnace Alcoa- 60,000 lb. aluminum capacity
- SWEATMODE will process 6,000 lb. batches of irony scrap per hr. using a 20,000 lb. rotary and keep iron contamination at a minimum.
- ELIMINATES disassembly by hand, scrap goes directly into furnace
- REDUCES cycle time up to 35% by transferring molten metal directly to a Reverb holder while reducing melt loss, energy consumption, flux usage, and labor.
- ACHIEVES 60% recovery on a 100,000 lb. run of irony material straight from the scrap yard.
Rotary Furnace- "SuperMelt" on SWIVEL Base 25,000 lb. aluminum capacity
- CAPABILITIES include monitoring of all phases of the operation to determine melt loss, BTU per lb., analysis, lbs. per hr, all conversion costs, etc.
- TYPES of Scrap melted are aluminum, lead, zinc, copper in solids, sows, UBC, dross, shredded, whole engine blocks, irony breakage of all types, etc.
- FIRED WITH natural gas, propane, waste oil, diesel, or oxygen combo
- To Improve Your Conversion Costs the "SuperMelt" System allows melting a wider variety of scrap while eliminating prior processing.
Patented Barrel design allows for precise control over pouring
**** We currently have a NEW "SuperMelt" Rotary Furnace on swivel base completed and ready to ship at a HUGE DISCOUNTED PRICE!
This unit has 21 cu. ft. molten material capacity, max. 10,000 lbs. load capacity.
"SuperMelt" has Swivel Base to allow the furnace to swivel around the perimeter of the furnace base.
