Plexim - RT Box Analog Breakout Board

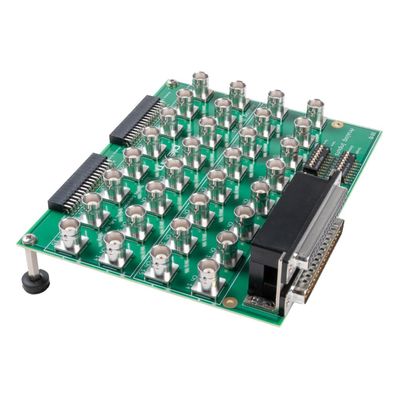

The Analog Breakout Board facilitates a simple access to the analog input and output channels of the RT Box via BNC connectors. Each of the 32 channels is connected to a dedicated BNC socket on the board. DIP switches allow to individually select differential or single ended operation for all input channels. To improve the signal/noise ratio, the input impedance of each input channel can be reduced from 1 MΩ to 10 kΩ.
