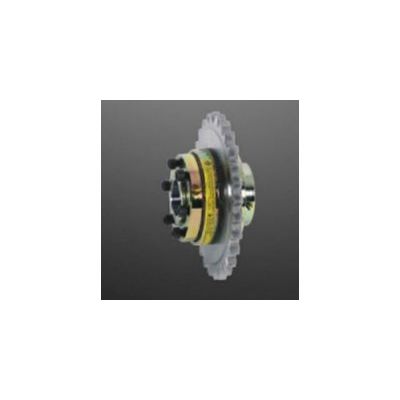

Ruflex - Torque Limiter with Sprocket
From Power Transmission Technology - Torque Limiters
The RUFLEX modular system is able to provide a solution for every drive. The combination with the well-approved KTR couplings and the integration of customer-specific drive components (e. g. sprockets) provides for an overload protection up to 6,800 Nm adapted to every application in an optimum way.
-
Most popular related searches
Product Details
To make sure that the torque limiter does not yet release with torque peaks related to the process, the switching torque of the coupling should exceed the maximum operating torque by at least 30 % (see diagramme).
Torque limiters and overload systems which re-engage automatically should only be used with a reduced speed for higher release torques. Frequent or longer slipping or ratching increases the wear of the torque limiter.
After the torque limiter has disconnected driving and driven side in case of overload, it may take some time before the drive comes to standstill because of a high inertia in the drive train. This may cause higher wear on the torque limiter and the overload system re-engaging automatically. That is why we recommend the use of the overload system KTR-SI as an idle rotation type for drives with big inertias or with higher speeds.
We basically recommend electronic monitoring of the torque limiters in order to protect the drive in case of overload.
We will be pleased to support you with technical questions and with the selection of torque limiters. For that purpose we dispose of the latest simulation and calculation programs. Here the following fact applies: The more detailed the data, the more accurate are the calculation results.
Features
- Torque limiter with integrated sprocket
- Overload protection up to 800 Nm
- Available as complete structural component
- Possible torque adjustment requested by the customer ex works
- Available from stock with standard chain wheels
- Further chain wheels available on customer request
