- S:FLEX - Tiled Roof Mounting System
S:FLEX - Tiled Roof Mounting System

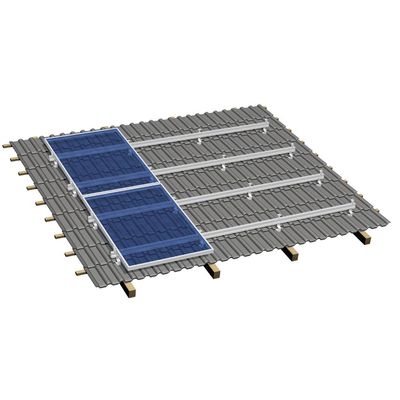

The advantages of S:FLEX tiled roof systems at a glance: Suitable for all standard roofing types (roof tiles, plain tiles). Laterally and height-adjustable roof hooks allow an absolutely flat module installation. Installation is possible from a rafter width of just 36 mm. For particularly high loads or for roofs with large-size tiles, we are offering our patented Hybrid and XL product line of roof hooks. We will gladly create the structural design for our customer`s projects if required – the documentation we provide includes the structural analysis as well as the rail and attachment diagram.
Roof hooks
Our roof hooks combine maximum load capacity with low dead weight, allow lateral and height adjustment and are easy to install. By means of corrugation and an elongated hole design, the mounting rail is secured in a friction locked and positive-fit connection.
S:FLEX wood screws
Our specially developed S:FLEX wood screws allow installation with a minimised distance to edge from a rafter width of 36 mm.
Mounting rails
For end and centre attachment, S:FLEX systems rely on particularly lightweight, structurally optimised hollow chamber rails in various profiles and lengths that feature our proven one-click technology.
Rail connectors
To ensure structurally identical properties in the area of the rails and the connections.
End and mid clamps
S:FLEX module clamps have an extremely wide clamping area and are therefore suitable for all standard modules and frame heights of 30-50 mm. High torsion resistance and our latest, ultra-smooth one-click technology make installation a snap.
Versatile, safe, durable
The majority of roofs on German houses consist of bricks (roof tiles, pantiles, interlocking clay roof tiles, plain tiles, slate). The robust sloping-roof frame from S:FLEX represents the ideal solution for reliable anchoring of solar panels. It is stable and storm-proof, weatherproof and durable, yet in harmony with the architecture, not least thanks to details such as black anodised components and end caps for the rails.
Application
Pitched roof with roof tiles, plain tiles, slate
Fastening
Roof hook on rafters (min. rafter width 36 mm)
Roof pitch
Up to 60 degrees
Module type
Framed and frameless modules
Module size
All common module sizes
Module orientation
Vertical/horizontal
Rail layers
Single-layer/double-layer, cross-adapter connection
Wind load
Up to 2.4 kN/m²
Snow load
Up to 5.4 kN/m²
Advantages
Freely selectable size of module array / variable height adjustment from 40–58 mm in the area of the roof battens; 21 mm in the rail area / suitable for all standard rafter distances
