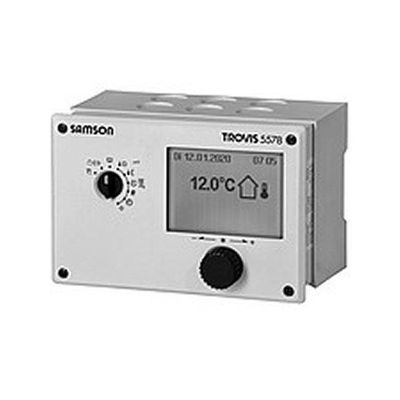

SAMSON - Model TROVIS 5578-E -Heating and District Heating Controllers
Heating and district heating controllers; MISSION; building automation, APPLICATION; meter reading. heating control. Drinking water preparation. district heating. district heating. cold control. Thermal solar systems. temperature control.
Most popular related searches
district heating
district energy
solar thermal system
solar thermal
heating water system
surge protection
heat exchanger
solar thermal water
solar thermal heating
solar thermal heat
Characteristics
- Heating and district heating controllers
- SAM DIGITAL READY
- Control of a primary heat exchanger or boiler with up to two mixed and one unmixed heating circuit (each weather-compensated) and control of the drinking water heating on the secondary side
- Weather-compensated buffer storage control with up to two mixed heating circuits and fresh water module
- Control of two weather-compensated heating circuits and a drinking water heating system with three valves on the primary side
- Control of three weather-compensated heating circuits with three valves on the primary side
- Systems with up to six control circuits possible via optional TROVIS I/O expansion modules (coupled via device bus)
- Systems with a larger number of control circuits can be implemented by interconnecting controllers via the device bus
- Direct access to the operating modes and the essential parameters of the individual control circuits via rotary switches
- Data query and input intuitively by "turning" and "pressing"
- LC display with plain text and symbol representation
- Annual time switch with up to four time programs (without TROVIS I/O) and automatic summer/winter time changeover
- Up to three usage periods per day (entry in 15-minute increments)
- Room control units for the individual heating circuits can be connected
- Demand-based control through setpoint request from downstream control circuits via device bus or 0 to 10 V
- Applications with solar thermal drinking water heating available
- Flow systems configurable with water flow sensor
- Heating curves either according to slope or according to four points
- Sliding limitation of the return temperature
- Adaptation: automatic adjustment of the heating curve (room temperature sensor required)
- Optimization: Calculation of the optimal switch-on and switch-off times for the heating (room temperature sensor required)
- Parameterizable screed drying
- Flash EPROM of the controller (operating system) can be updated
- Integrated M-Bus interface for communication with up to three M-Bus devices
- Galvanically isolated RS-485 interface for Modbus RTU/device bus communication
- Ethernet interface for Modbus TCP/IP communication and connection to SAM DISTRICT ENERGY
- Configuration and parameterization with the TROVIS-VIEW software via Ethernet interface
- trend viewer
- Tabular representation of alarms
- Settings changes with timestamp
- event list
- Service hotline for heating controllers of the TROVIS 5400 and 5500 automation systems (subject to a charge)
- Accesories
- Outside Temperature Sensor Type 5227-4
- Sensors for flow, return and storage tank temperature Type 5277 (immersion sensors) and Type 5267-3 (contact sensor)
- Room Temperature Sensor Type 5257-11
- Room panel with transmitter and operating mode switch, type 5257-51
- TROVIS-VIEW software (free of charge)
- Surge protection SA5000 for two-wire bus network
- TROVIS I/O expansion module
- SAM MOBILE Gateway for connection to SAM DISTRICT ENERGY
- SAM LAN Gateway for connection to SAM DISTRICT ENERGY
