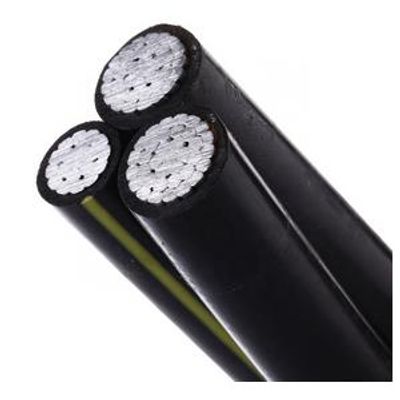

Dosense - Self Supporting Autoportantes Cable

Operating voltage: 0.6/1 kV. Operating temperature: 90°C. In emergency conditions: 130°C. Installation: secondary distribution. Cable Size: from 16 mm2 Up to 120 mm2. Under short circuit conditions: 250°C. Identification: the conductors shall be identified by ribs or edges extruded longitudinally over the insulation.

Cables CAAI Applications

Used in urban or rural secondary distribution systems. Connections with the transformator and to the user. They do not require the use of insulators.

Manufacturing standard

NTP 370.254/ XLPE insulated self-supporting overhead distribution cable, voltage not exceeding 0.6/1kV.
NTP-IEC 60228/ Conductor for insulation cables.
NTP 370.258/ Conductor with round wires of concentrically stranded

Cable Color: Black

Dosense Cable is a professional Cables Autoportantes CABLE CAAI factory in China.We are able to provide integrated solution in overhead power lines and wide production range in transmission line. Our overhead cable products include bare overhead conductors (AAC,AAAC,ACSR,ACAR), overhead insulated cables (Aluminum Duplex Service Drop Cable,Triplex Service Drop Cable, Quadruplex Service Drop Cable, SAC Cable, MV ABC cable)etc.

For Cables Autoportantes CABLE CAAI prices, free to contact us! We will reply to you that day with feasible prices and technical documents in time!
