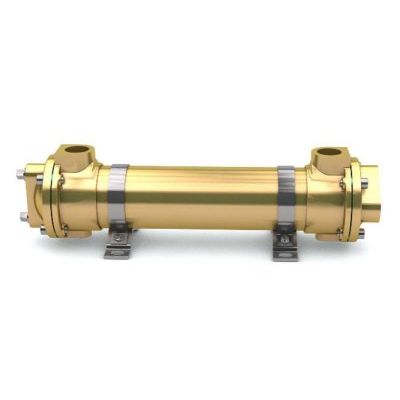

Funke Standard - Model BCF, CCF, SSCF -Shell-and-Tube Heat Exchangers
Our universal shell and heat exchanger in a modular system construction is used mainly to cool liquids such as lubricating oil and hydraulic oil or water, as well as for heating by means of saturated steam. Water, water/glycol mixtures or seawater can be used as coolants. More than 200 graduated building sizes in different materials form the basis for an optimal and detailed type selection. Standardization means we can ensure short delivery times.
Most popular related searches
shell-and-tube heat exchanger
shell and tube heat exchanger
tube heat exchanger
heat exchanger
heat exchanger tube
lubricant oil
heat exchanger system
carbonization
cooling lubricant
- Tube bundle fixed (F) or

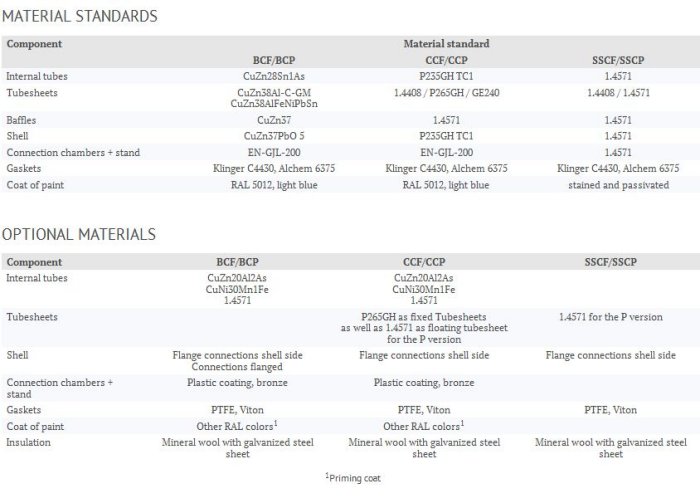

removable (P versions) - Material variants
- Brass (Types BCF / BCP)
- Carbon Steel (Types CCF / CCP)
- Stainless Steel (Types SSCF / SSCP)
- Exchange surfaces from 0.11 m² to 11.45 m²
- Internal tube measurement:
6.35 x 0.5 mm and 9.5 x 0.8 mm - Variable baffle spacing
- Tube side 1-, 2- or 4-pass
- Horizontal or upright version with angle or clamped feet or stand
Boundary conditions
- Design pressure:
Shell side: 16 bar
Tube side: 10 bar - Design temperatures:
- BCF/BCP/CCF/CCP: -10 / 150 °C
- SSCF/SSCP: -10 / 230 °C
- Approval type pursuant to
PED 2014/98/EU module B - CE marking
