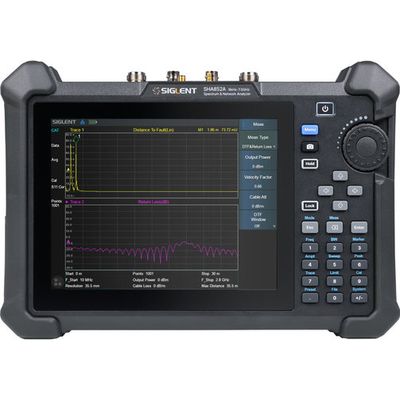

Siglent - Model SHA851A, SHA852A -Handheld Spectrum, Cable, Antenna Analyzers
The Siglent SHA850A series are handheld portable spectrum, cable, and antenna analyzers with VNA option. The devices are powerful and flexible tools for field and outdoor RF applications, communication engineering, telecom operation and maintenance, radio management, factory production, education, teaching, and many more. With a frequency range up to 3.6 GHz (SHA851A) or 7.5 GHz (SHA852A), the analyzers deliver multiple operating modes and reliable automatic measurements.
Most popular related searches
spectrum analyzer
vector network analyzer
cable fault locating
cable fault location
network analyzer
cable fault
handheld spectrum analyzer
cable locating
- Spectrum analyzer frequency range from 9 kHz up to 3.6 or 7.5 GHz.
- Integrated pre-amplifier 25 dB standard.
- 165 dBm/Hz displayed average noise level/DANL (typ., pre-amp. on).
- SSB noise level typ. -104 dBc/Hz.
- Dynamic range 114 dB.
- ±0.5 dB total amplitude accuracy at 10 kHz offset phase noise (1 GHz typ).
- 1 Hz up to 10 MHz minimum resolution bandwidth/RBW.
- Cable and antenna anylzer 100 kHz to 3.6 or 7.5 GHz: DTF, SWR measurement, time domain analysis.
- Option: Built in DC voltage bias up to 32 VDC (option SHA850-BIAS).
- Option: Independent signal source 100 kHz to 7.5 GHz (option SHA850-SOR).
- Option: 1 path 2 port vector network analyzer/VNA 100 kHz to 3.6 or 7.5 GHz (option SHA850-VNA) can measure TDR, VSWR, port matching debugging, insertion loss measurement, tower amplifier debugging, cable fault location, Smith chart.
- Option: GPS positioning and logging (option SHA850-GPS and GPSM).
- 8.4"/12.2 cm multi touch screen; possibility to connect mouse and keyboard.
- Typical working time 4 hours.
Benefits of the Siglent SHA850A Series Spectrum Analyzers up to 7.5 GHz with VNA Option
- Spectrum analyzer, cable and antenna analyzers in compact handheld device.
- Optional VNA, integrated source, GPS/logging.
- Low phase noise typ. -104 dBc/Hz.
