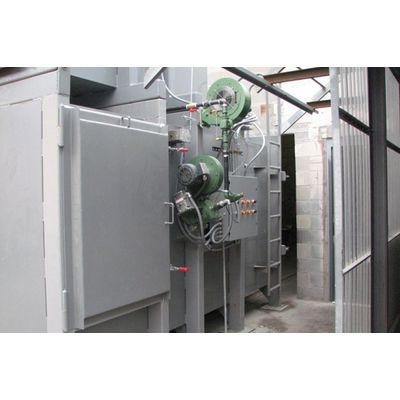

HiTemp - Single and Dual Hearth Furnaces System
HiTemp Process Furnace Systems are designed and manufactured for low and high BTU solids using a combination of temperature and destructive distillation to breakdown the combustibles. An afterburner system separately controls adding secondary combustion air to raise the temperature of the exhaust gases to the required operating temperature, eliminating any smoke or vapors.
Most popular related searches
rotary hearth furnace
natural gas burner
furnace
refractory lining
gas burner
vaporizer system
burner line
combustion system control
carbonization
gas line
Both our Single and Dual Hearth Process Furnace Systems include:
- Natural Gas Burner
- Refractory-Lined Chamber(s)
- Constructed of Carbon Steel
- Ceramic Fibre Rated to 2,200oF (1,200oC)
- Anchors for Ceramic Fibre Refactory
- Sight Port(s)
- Thermal Wells
- Access Door
Our Process Furnace Systems are designed specifically to meet each customer's needs for size, orientation and process requirements.
Options include:
- Extended Stacks
- Stack Scrubbers
- Fans
- Controls designed to work with existing location systems
Special Note
- Customer is responsible for all emission testing, rigging and field modifications, field ducting, piping and wiring, mounting and wiring of remote panels, monitoring equipment, and all starters and 3-phase electrical work. No platform is provided for stack gas sampling.
- HiTemp can assist in the design and layout and also provide the time of an on-site Technician as may be required during system installation at no charge for labor for up to two (2) days (Per-diem travel and living expenses are extra).
- Systems are shipped EXW unless alternate prior arrangements are made.
