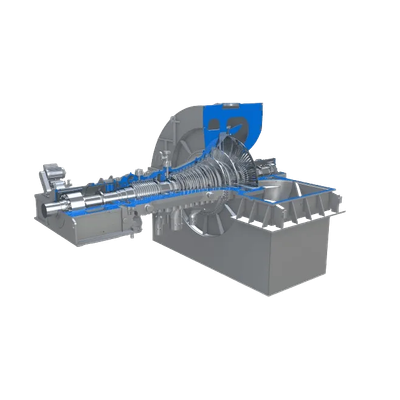

Toshiba - Model TX-1 -Single Casing and Flow Steam Turbine Generator
The TX-1 series steam turbine consists of a single casing which houses an HP turbine, IP turbine and LP turbine. The TX-1 is available in down – or axial-exhaust configuration, resulting in a tailored, extremely compact design. The single casing construction allows for a simplified design which offers great performance in an extremely cost-efficient system.
Most popular related searches
- Down- or axial-exhaust options.
- High availability and reliability.
- Simplified design tailored for compact solutions.
- Ease of maintenance due to compact size and single-casing design.
- Class-leading availability and reliability.
- MAIN STEAM PRESSURE: UP TO 170 BARA / 2,466 PSIA
- MAIN STEAM TEMPERATURE: UP TO 585 DEG. C / 1,085 DEG. F
- REHEAT TEMPERATURE: UP TO 585 DEG. C / 1,085 DEG. F
- OUTPUT: UP TO 220 MW
- FREQUENCY: 50HZ OR 60HZ
