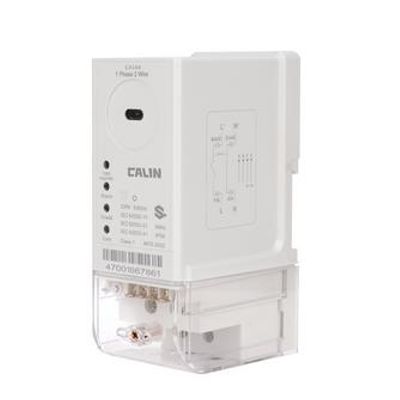

Calinmeter - Model DLMS/COSEM -Single Phase Din Rail Prepaid Energy Meter
The meter is a split-type compact Din Rail mounted class 1 accuracy single phase electricity meter built in 35mm international standard housing made of poly-carbonate flame retardant materials. Galvanic isolation wire is basic connection between the meter and keypad. Double circuit measurement and relay are also available on request for reinforced tamper prevention.
- DLMS/COSEM standard compliant
- RS485/RF-LORA downlink to smart meters
- GPRS/3G/DSL uplink communication with a head-end AMR/AMI system
- Data collection include total consumption/ historical daily & monthly consumption
- Meter parameter/ status/ Real-time data reading
- Tamper event record and upload automatically
- Easy to install due to BS mounting
Split Configuration for Increased Revenue Protection
The CIU (Customer Interface Unit) is optional. The MCU (Metering & Control Unit) and UIU is linked via Mbus 2 wires communication, galvanically-isolated Power line carrier (PLC) or Radio Frequency (RF) wireless communication, the communication method is on request.
The UIU is installed within consumer’s home, while MCU is installed in a meter cabinet away from consumers.
