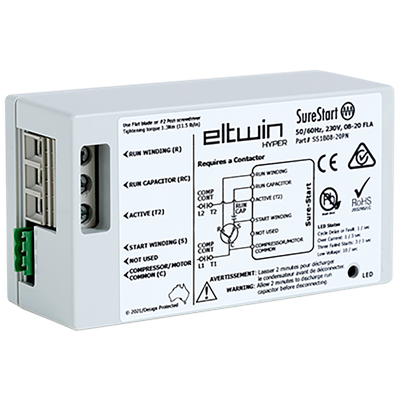

Eltwin Hyper -Â Model SureStart -Single Phase Soft Starter
Engineered specially for single-phase applications, these soft starters ensure dependable startup performance for solar inverters and generator backup power. Compliant with major utility regulations, SureStart® delivers the most efficient soft start along with a host of protection features.
Achieve over 60% reduction in startup current for your AC unit and pumps with our range of single phase Surestart solutions.
This will eliminate light flicker, reduce start-up noise, and extend the life of the motor or compressor. Single phase soft starters are suitable for 1.75 to 7 horse power (hp) motors in the 220/230V models and are suitable between 0.75 to 1.75 hp for the 115V models.
Plus, all single phase models work in both 60Hz and 50Hz applications.
- 115 Volts
- 220-240 Volts
- HVAC/R
- Irrigation/submersible pumps
- Compressors
- Marine/RV
- Solar power
- RV/trucks
- Military/government
- Backup generators
- Automatic adjustment to cover the range of 1.75 to 7 hp
- Fully self-contained in a conveniently small, double-insulated and flameretardant enclosure
- SureStart® is out of the circuit after startup. It consumes less than 2W average in running mode
- Reduce inrush current up to 70% at startup
- Reduce light flicker by up to 10 times
- Reduce startup noise and vibration
- Avoid torque stress fracture on pipes
- Automatic optimization of motor startup current
- Reduce the voltage dip in the power line during startup
- Reduce mechanical stress and prevent over-heating of compressor
- Extend motor lifetime
- Easy installation with supplied wiring
- Protects the compressor/motor from stalling at low voltages
- Delay function limits number of motor starts per hour
- Provides motor reversal protection during short power outages
- Internal delay timers prevents rapid cycling in fault conditions
- Provides brownout protection
- Self-testing diagnostics
- SS0B12-20SN (115V, 60/50Hz, 12-20 FLA)
- SS1B08-16SN (230V, 60/50Hz, 08-16 FLA)
- SS1B16-32SN (230V, 60/50Hz, 16-32 FLA)
- SS1B08-20PN (230V, 60/50Hz, 08-20 FLA)
- SS0B08-20PN (115V, 60/50Hz, 08-20 FLA)
