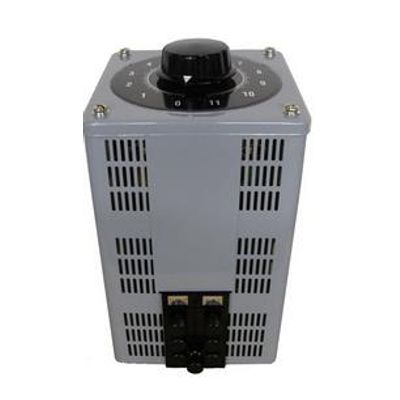

Ashley-Edison - Model AE-LB- 100V - 120V - Single Phase Variable Transformer
For a diverse variety of applications from Quality Control Testings to Low Voltage Performance Evaluation, Ashley-Edison’s endurable range of Variable Transformers deliver an efficient & reliable method of varying output AC voltages from 0 to 117% of line voltage.
All Ashley-Edison Variable Transformers are built with an ultra smooth commutator surface and operates with optimum contact pressure of the brush on the commutator. Combined with firm positioning of the coil and internal components, this ensures delivery of low operating torque.
With extremely small power loss attributes, Ashley-Edison Variable Transformers deliver an efficiency of 98% or better and negligible variations in output voltage, from no load to full load.
Typical use of a Variable Transformers include quality control testing, electronic equipment burn-in, low voltage performance evaluation, DC rectifier/regulator analysis or other industrial and engineering applications.
+6% of nominal (i.e. 240V models are continuously rated at 254V)
- 10x max current rating for 1 second
- 3x max current rating for 60 seconds
- 2x max current rating for 5 minutes
- Continuously variable from 0 to 117% of input voltage.
- More than 98%.
- Any
- 47Hz to 60Hz
3Amps ~ 80Amps
- Input: 110V / 115V / 120V
- Output: 0V~129V / 134V / 140V
- Indoor IP20 Enclosure
