SINO-NSH - Model VF Series -Single-Stage Vacuum Insulation Oil Purifiers
The use of Single-stage Vacuum Transformer Oil Purifier (Model SINO-NSH VF) is necessary, which will help you maintain optimal oil cleanliness. VFD series is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VF series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
Most popular related searches
single-stage vacuum insulation oil purifier
vacuum transformer oil purifier
vacuum oil purifier
transformer oil
insulating oil purifier
high voltage transformer
transformer oil purifier
transformer oil cleaning
oil-insulated transformer
circuit breaker
- Flow Rate: 600-6000 Liter/Hour
- Treating Oil: Insulation oil (Transformer oil, Silica oil, etc.)
- Function: Dehydration, Degassing, Impurities-removal
- Power Supply: 380VAC / 3Phase / 50Hz (or tailorable to yours)
- Delivery Time: 10 working days
- Supply Ability: 50 sets per month
- Removes Dissolved Moisture Transformer Oil
- Reduces combustible gases and oxygen
- Improves oil dielectric values
- Improves transformer power factor
- Extends oil service life
- Extends transformer service life and reliability
- Water: ≤ 7 PPM
- Filter Fineness: ≤ 5 µm (or ≤ 1 µm)
- Dielectric: ≥ 60kV~65kV
- Degassing: ≤ 0.1%
Oil color: better than L=0.5
- Acid Value: ≤ 0.01 MgK0H/g
- Soluble Acid PH value: =5~7
- Dielectric loss tangent tg(90?)% : ≤0.002
- Flow rate: 600 ~ 16,000 L/H
- Vacuum range: -0.065~-0.096 Mpa
- Working pressure: ≤0.3 Mpa
- Max vacuum range: ≤ 90 Pa
- Temperature range: 20 ~ 80 ? (settable)
- Moisture content before and after
- Real-time flow rate, total volume
- Particle content online inspection
- Filter blocking state
- All components state monitoring
- Base frame with caster wheels
- Metallic enclosure cover on caster wheels
- Metallic enclosure cover on single axle trailer
- Base frame on double axle trailer

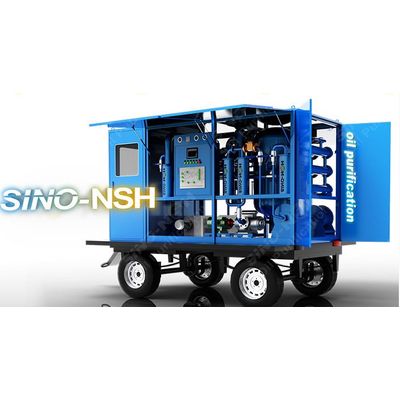

- Metallic enclosure cover on double axle trailer
- Metallic enclosure cover and operation room on double axle trailer
