TECHNO-PARTS GmbH

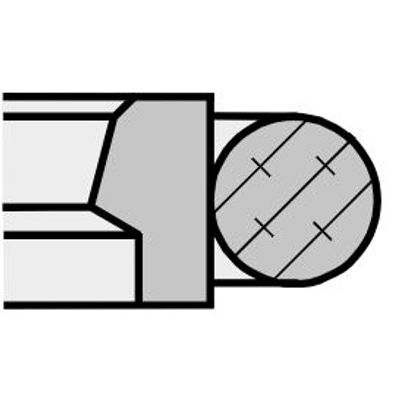

TECHNO-PARTS - Model 1G9 - Slide Seal Set for Hydraulic Applications
The Slide Seal Set 1G9 is engineered for hydraulic systems requiring seals capable of withstanding significant pressures and temperature ranges. This seal set is optimal for environments with pressures up to 400 bar and temperature fluctuations from -30°C to +100°C. Designed with a sliding speed capability of up to 4 meters per second, it ensures efficient operation under dynamic conditions. The standard material used is 0005X, although other materials are available to suit extreme temperature requirements. The Glide Ring within the set is constructed to exhibit robust material properties, while the O-ring utilizes materials such as FKM and EPDM, providing chemical resistance and flexibility. This seal set stands out for its versatility and durability, suitable for both chemical processing and heavy machinery applications.Most popular related searches
Slide seal set for general machine-building, machine tools and mobile hydraulic applications. Depending on compound and elastomer, adaptable to many media and operating conditions.
Application Range
Pressure: ≤ 400 bar
Temperature: -30 °C / +100 °C
Sliding Speed: ≤ 4 m/s
Standard Material: 0005X
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
