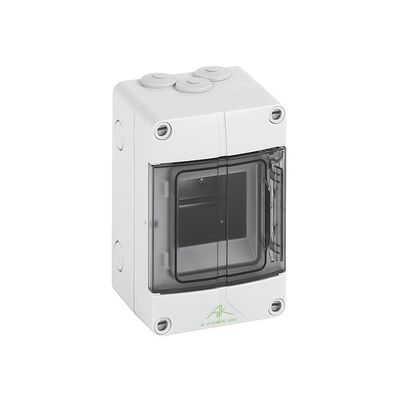

Gunther - Model AK 03 -Small Distributions Boards
Product number: 73540301 | Dimensions: 100 x 150 x 96 mm. Small distributions boards, protection class IP65, 1 row, 3 available modules, rated operational voltage: 400V AC, metric knockouts on top and bottom for universal cable insertions with cable glands and/or double membrane seals, pre-mounted with double membrane seals M20 at the top, for standard installations indoors with PE/N terminal rail, each with 1 clamping point 16 mm² and 3 clamping points 6 mm². Accessories supplied: Double-membrane seals: 1x M25, sealing plugs, masking and labelling strips.
Reliable - The high protection class (IP65) and the robust, halogen-free design ensure reliable operation even in a tough industrial environment.
Electrical characteristics
- Rated operating voltage AC: 400 V
- Protection class: II
- Type of protection: IP65
- Number of rows: 1
- Number of modules: 3
Colours
- Base unit colour: grey
- Cover colour: grey
Dimensions
- Width: 100 mm
- Length: 150 mm
- Height: 96 mm
- Inner height: 71 mm
- Weight: 0.355 kg
- Material characteristics
- UV-resistant: no
- Halogen free: yes
- Flammability class according with UL94: HB
- Glow-wire flammability according to EN 60695-2-11: 650 °C
mechanical properties
- Type of fastening: Surface mounting
- Impact strength: IK07
- Sealable: yes
- Cover screw torque: 1.2 Nm
- Stackable: no
Ambient conditions
- max. relative humidity 25°C: 95 %
- max. relative humidity 40°C: 50 %
- Min. ambient temperature: -25 °C
- Max. ambient temperature: 40 °C
- 24h ambient temperature: 35 °C
- Installation location: Indoors
Sales Information
- EAN: 4013902063130
- ETIM Class: EC000214
- Custom tariff number: 85369095
Material
- Base unit material: Polystyrene
- Cover material: Polystyrene
- Sealing material: Polyurethane
- Cover screw material: Polyamide, glass-fibre reinforced
- Hinged window material: Polycarbonate
