Komax - Model TS1400 - Small, ...

Komax - Model TS1400 -Small, Economical and Compact Low Voltage Testing System

SHARE

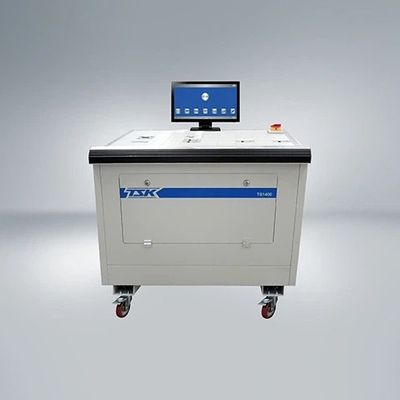

The small, economical and compact TS1400 test system has everything for testing wire harness in the automotive supply industries and cable assembly. The TS1400 test system is suitable for the testing ofsmall and medium wire harnesses. The test grid facilitates operation and ensures convenient adaptation, safe testing and reliable logging.The variable positioning of the test adapters and standardized interfaces improve efficiency, the ergonomic work area with a test grid inclination of 15° ensures a safe work place.The small size makes the test system flexible in use.Other models and sizes are available on request. The TS1400 test system can be combined with all cable testers and can be configured according to customer requirements.

Most popular related searches

low voltage test

power supply unit

voltage testing system

DC power supply

low voltage system

cable testing system

TS1400 23.62x23.62in

Metric

Dimensions/height min.: 960 mm
Dimensions/height max.: 1000 mm
Dimensions/width min.: 770 mm
Depth max.: 950 mm
Total weight, without test adapter (modules) approx.: 75 kg
Number of system segments: 1
Voltage (AC), input min.: 90 V
Voltage (AC), input max.: 260 V
Frequency, input min.: 50 Hz
Frequency, input max.: 60 Hz
Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
Voltage, input, connector optional: CEE plug (400 V, 16 A, 5-pin)
power supply 1, voltage (DC): 24/12 V
power supply 1, current (DC) max.: 6 A
Total power, standard (depending on the number of power supply units) max.: 1500 W
Ambient temperature, operation min.: +10 °C
Ambient temperature, operation max.: +40 °C
Ambient temperature, storage min.: -10 °C
Ambient temperature, storage max.: +60 °C
Air humidity non-condensing min.: 40 %
Air humidity non-condensing max.: 75 %
Emission sound pressure level (according to DIN 45635) max.: 80 dB
Protection class: IP 10
Operating height (feet above sea level) max.: 2000 m
Test grid width: 600 mm
Test grid depth, horizontal: 600 mm
Test grid area: 0.36 m²
max. number of test adapters (modules) to be installed for size100x100: 36
Test grid inclination, horizontal: 15 °
Maximum permissible load on the test grid: 1,1 / 100 g/cm²
Test points min.: 128
Test points max.: 640
Cable tester CT30ix: yes
Operating pressure (according to ISO 8573-1: 5/5/4) min.: 5 bar
Operating pressure (according to ISO 8573-1: 5/5/4) max.: 7 bar
Compressed-air connection: Kupplungsstecker Rectus G1/4 26AF AW13 bar
Pneumatic connections min.: 40
Pneumatic connections max.: 80
