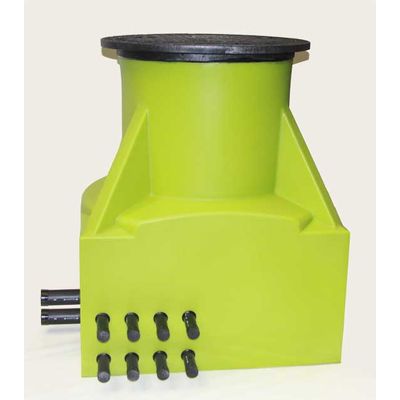

Terra-Calidus - Small & Large PE Chamber

Stable PE chamber, green color inspection friendly. Standard design: CLASSIC (cover load up to 200kg), PRO (cover strength up to 600kg wheel load). Different PE covers (black color) available. Connecting tubes min. Ø 32 (feed, return flow) to weld the geothermal probes using electro-welding fittings. Heat pump connection min. Ø 32 to weld the tubes using electro-welding fittings. For extra charge: main shut-off valves on header pipe (chambers SMALL - up to 7 brine circuits / LARGE - 17 brine circuits), heat pump connections size reduction (chambers SMALL - up to 7 brine circuits / LARGE - 19 brine circuits). Delivered with ready assembled manifolds. Tested load class: max. 1,1t wheel load .
