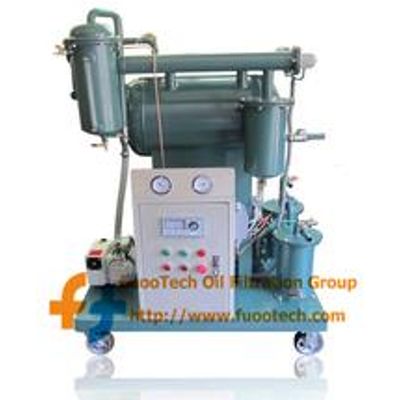

Fuootech - Model ZY Series - Small Portable Insulating Oil Purifier
ZY Series high efficiency vacuum insulating oil purifier, mainly for the power station, industrial and mining enterprises purifying the unqualified transformer oil, mutual inductor oil, switch oil and so on. ZY Series can remove water, trace water, gas, particles from oil quickly and effectively, improving oil dielectric strength. Also, this oil purifier can be used to power equipments to vacuum drying, and vacuum oiling.
- Capacity: 300 ~ 600 Liters per Hour
- Power Supply: 380 V, 50 Hz, 3 Phase (or as per request)
- Packing Details: In Standard Exportation Wooden Case
- Delivery Time: 10 days
- Payment Terms: T/T, L/C, Cash, Negotiable
- Certification: CE, ISO, CCC
- Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
- Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
- Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
- Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely.
- Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
- Working with BZ insulating oil regeneration device to decolor (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity.
- Fully automatic temperature controlling system, digital type temperature gauge and temperature sensor.
- High effetive Z type electric heating system, less surface load, and no bubble during heating process, oil heating average.
ZY Series is efficient and economical insulating oil purifier. Duplex-Stereo film evaporation technology, unique and advanced dewatering, degassing components, making working efficiency is 3-5 times than traditional oil purifier. Machine adopts interlocked protective system, double-infrared liquid level sensor and pressure protective system to make sure the machine work unattended, operation easy, safe and reliable.
- Fully enclosed-type equipped with high quality steel doors and covers for protecting machine in outdoor operation (weather proof, vacuum proof, Waterproof, dustproof etc.), outdoor use.
- Mobile trailer type is normally combined with fully enclosed type, mounted with vehicles to move the whole machine to outside fields for filtration works.
- Some main parts such as vacuum pump, oil pump, and electric parts can be chosen in different brands as per client`s favourite (such as CHINT, DELIXI, SIEMENS, LEYBOLD, ABB etc.), different brands, different price with different delivery time. Pls check and confirm with our salesman.
- Moisture (PPM) meter, flow meter, dielectric strength (BDV) oil tester, P.L.C controlling system and other required parts can also be installed on the machine as per request.
- Some consumable spare parts including filters and tools for 2 years` operation are also strongly recommended to clients for spare and replacement in the future.
