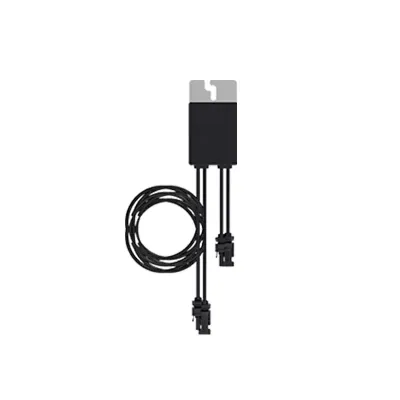

WIT Solar HUAWEI - Model SUN2000-450W-P2/600W-P -Smart PV Optimizer

The HUAWEI Smart PV Optimizer SUN2000-450W-P2/600W-P is designed to enhance the efficiency of solar power systems by allowing more modules on each roof, thus achieving higher system yields. This optimizer is versatile, suitable for all application scenarios, and is capable of increasing energy output by up to 30% as it ensures the performance of each module is optimized. It achieves lower Balance of System (BoS) costs owing to the long string design which facilitates higher oversizing. The optimizer supports module-level voltage shutdown, making installation and maintenance safer, and it also includes support for PINpoint arc fault positioning. Key technical specifications include a rated input DC power of 450 W, MPPT operating voltage range from 10 to 80 V, and a maximum output voltage of 80 V. The optimizer is also equipped with Staubli MC4 connectors, IP68 protection degree, and has compact dimensions of 75 x 140 x 28 mm, weighing 0.6 kg.
