Soil-Therm - Model Micro-ELECTRIC -Electric Oxidizer Systems
The Micro-ELECTRIC is the most popular of our electric oxidizer systems. Mounted onto a very small 4 ft x 3.5 ft skid, the 24 kW electric heater and heat exchanger provides amazing performance and efficiency at flows from 20 to 300 cfm.
Micro-ELECTRIC Remediation Systems are complete SVE catalytic oxidizer systems with heat exchanger ready for cleanup operations in the smallest spaces. Using only electrical power, these systems are quiet, small, and powerful. Easy to transport, install, and inexpensive to operate, Micro-ELECTRIC technology provides permanent destruction of VOC’s. The best value on the market!
Flow (std): 50 to 220 cfm, vacuums to 14” Hg
Super Small: Only 4-ft x 3.5-ft skid, ~1400 #.
SVE Blower: The Micro-ELECTRIC Standard SVE Blower is 8.5 hp and rated for 220 cfm and vacuums to 14” Hg. Other blowers are also available - - including a 370 cfm SVE blower and a 150 cfm dual phase water sealed pump rated to 28” Hg!
Heater: 18-30 kW electric immersion heater with ~60% H.E.
Dilution Air Blower: Enables dilution of extracted VOC’s on the pressure side of the SVE blower, prior to entering the heat exchanger. Enhance control of Micro-ELECTRIC oxidizer without losing well vacuum required to extract vapors.
Stainless Water KO: 25-gallon water capacity with high level switch alarm shutoff, and stainless steel vapor piping too! Standard 1/2hp Water KO Pump Included!
Options
- KO Tank Digital Level Sensor (displayed in gals)
- Hi-Flow SVE Blower: 370 cfm, to 10” Hg
- Hi-Vac SVE Blower: 370 cfm, to 15” Hg
- Hi-Vac DPE Regen Blower: 150 cfm, to 20” Hg
- Internet Access Telemetry & Control
- Locking Skid Enclosure or Trailer Enclosure
- LEL & Oxygen Sensor Monitors
- 5’ x 10’ Dual Axle Open Trailer
- Heater Amp Monitor for Power Usage Display
- 1 or 3-phase Electrical
- Many more options available - - please ask!
- Skid Size: 4ft by 3.5ft Steel Skid with fork slots
- Blower (Choice 1): Siemens 1610 Blower: 220 cfm to 14" Hg, 8.5 hp
- Blower (Choice 2): Siemens 1800 Blower: 370 cfm, to 10" Hg, 11.5 hp
- Heater: 18-24 kW, 230VAC, 1 or 3-phase
- Catalyst Module: Greater than 98% destruction
- Heat Exchanger: All stainless shell & tube, 55-60% efficiency
- Piping: 3`" Stainless steel
- Water Knockout: 25 gallon, stainless steel, dual level removable level switch
- Knockout pump: Goulds NPE Stainless steel with ½ hp motor
- Well Vapor Valve: 3" Brass Gate Valve
- Dilution Air Valve: 3" Brass Gate Valve
- Main Control Panel: 30"x 24"x 12", UL Listed, Nema4

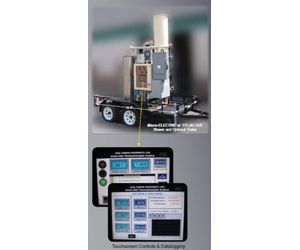

- Operator Interface: 8" Color Touchscreen with 4GB data card
- Variable Freq. Drive, Main Blower
- Main Blower Upgrades
- 1810 SVE Blower, 370 cfm to 14" Hg
- 7630 SVE/DPE Blower, to 20" Hg
- Roots 56 PD Blower, 200 cfm, to 14" Hg
- Dilution Air Blower Upgrade to 150 cfm, 2 hp
- ReMAC - (Remote Monitoring and Control)
- Cellular Modem Unit with Antenna
- Cellular Service (monthly fee)
- Monitoring Instrumentation Upgrades:
- LEL (pre-burner or exhaust stack)
- Oxygen (%)
- Amperage (A)
- Discharge Temperatures ( F)
- Stack Emissions Monitor (O2, VOC, CO2, etc )
- Many others...
- Trailer, dual axle, 7,000 lb gvwr, 6`x12` open deck
- Trailer, enclosed, 10,000 lb gvwr, 8`x14` enclosed deck
- Enclosure, Cargo Container style
- Enclosure, Noise Attenuated Cargo Container style
SOIL-THERM has recently introduced our latest Micro-ELECTRIC thermal systems for space restricted sites without natural gas or propane utilities. Our Micro-ELECTRIC catalytic oxidizers are can be built for 1 or 3-phase electrical power, with advanced electrical controls and 30kW heater for automatic temperature control all day long. No fl ameouts with these systems - the 30 kW electric heater heats the extracted VOC’s for destruction by the catalyst. Micro-ELECTRIC systems range from 220 to 370 cfm flows with powerful dual-stage regenerative blowers that can operate continuously to 14” Hg. Quiet, compact, energy efficient, and each system now includes our 8” Color Touchscreen with 1GB datalog memory.
- VOC Processing: to 3,500 ppmv
- Destruction Effi ciency: >98%
- VOC’s /hour (max): 15 #/hour
- Skid Size: 4-ft x 3-ft x 13-ft (H)
- Weight: ~1400 - 1800 lbs
- Well Vapor Hookup: 3”
- Heat Exchanger: Stainless Steel, 60%
- Catalyst: Platinum type
- Electrical (3-phase; 1-phase available):
- 8.5hp SVE Blower: 230VAC, 3-ph, 60 Hz, 100A
- 11.5 hp SVE Blower: 230VAC, 3-ph, 60 Hz, 125A
- 16.9 hp SVE Blower: 230VAC, 3-ph, 60 Hz, 150A
- Approvals:
- UL 508A Certified Panel
- SCAQMD Certified Permit
