HELUKABEL SOLARFLEX - Model X H1Z2Z2-K - Solar Cable

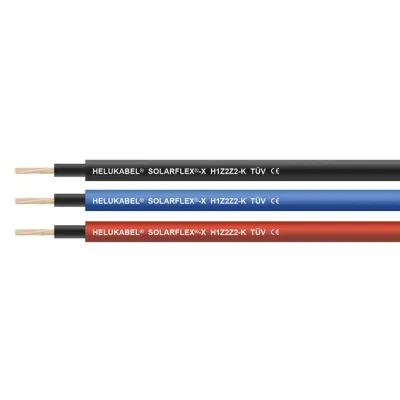

The SOLARFLEX®-X H1Z2Z2-K is a specialized solar cable designed for optimal performance in photovoltaic systems. Constructed for durability and reliability, this cable is suitable for connections between solar panels and inverters, facilitating efficient energy transfer in solar power installations. It is available in multiple cross-sections ranging from 2.5mm² to 150mm² and comes with various color options, including black, blue, and red. With advanced cable structure and properties, it is engineered to withstand extreme temperature variations and resist environmental factors like UV radiation, moisture, and ozone. Tested for compliance with international standards, it offers secure and stable power transmission, critical for maximizing the efficiency and lifespan of solar energy systems. This cable is pivotal for renewable energy projects, ensuring minimal power loss and providing robust functionality over long periods.
Cable Structure
- Copper wire tinned, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
- Conductor insulation: cross-linked compound
- x = without ground conductor
- Outer jacket: cross-linked compound
- Jacket color: see datasheet
Properties
- resistant to: UV radiation, ozone, weathering effects, water
- for outdoor use
- direct burial
- halogen-free
Tests
- halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1
- flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
- smoke density acc. to DIN VDE 0482-1034-1+2 / DIN EN 61034-1+2 / IEC 61034-1+2
- UV-resistant acc. to DIN VDE 0283-618 / DIN EN 50618 Appendix E
- ozone-resistant acc. to DIN VDE 0283-618 / DIN EN 50618
- weather-resistant acc. to DIN VDE 0283-618 / DIN EN 50618 Appendix E
- water-resistant acc. to DIN VDE 0285-525-2-21 / DIN EN 50525-2-21 Appendix E
- DC Voltage insulation resistance acc. to DIN VDE 0283-618 / DIN EN 50618 Tab. 2
- certifications and approvals:
- EAC
- TÜV Rheinland
Notes
- the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only
Application
- SOLARFLEX®-X H1Z2Z2-K is used for wiring solar modules. Suitable for direct burial; recommendation: laying in pipes. Not suitable for permanent installation in water. The maximum permissible DC voltage of the system in which the cable is installed must not exceed 1.8 kV. The cable is suitable for use in and on devices and systems with protective insulation (protection class II). Minimum temperature during installation and handling: -25 °C.
- Cross-linked single conductor cable acc. to DIN VDE 0283-618 / DIN EN 50618
- Temperature range ; fixed -40°C to +90°C
- Conductor operating temperature ; +120°C
- Nominal voltage ; AC U0/U 1000/1000 V
- DC U0/U 1500/1500 V
- Test voltage ; 6500 V
- Minimum bend radius ; fixed 5x Outer Ø
