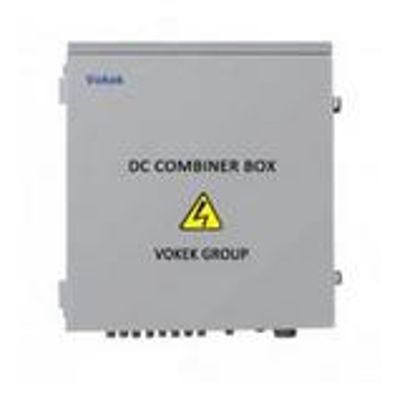

Vokek - Solar DC Combiner Box

SHARE

Solar String Combiner Box is required in large scale solar system or solar pump system, it is installed between PV array and solar inverter with the following main function:  Minimize the cable length. Increase reliability and stability by providing protection against lighting and short circuit. Simplify maintenance by reducing connection lines between PV array and solar inverter kit.

Most popular related searches
solar combiner box
large-scale solar
power distribution enclosure
string combiner box
solar inverter
circuit breaker
power distribution
photovoltaic system
photovoltaic module
photovoltaic cell

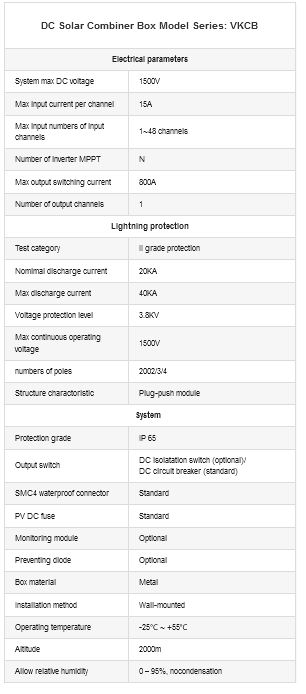

The VKCB lightning protection combiner box combines the DC input and sink of 2，3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 24, 30,36, 48 PV modules to 1 output, each channel is equipped with a fuse, and the output is equipped with a lightning arrester and a circuit breakerThe input wiring of the DC power distribution cabinet and the inverter is greatly simplified. Provide lightning protection, short circuit protection and grounding protection.The combiner box is divided into two types, intelligent and non-intelligent. The intelligent lightning protection combiner box is equipped with a sink monitoring unit. It can monitor the current input from each photovoltaic cell string, the summed output voltage, the temperature inside the box, the status of the lightning arrester, and the status of the circuit breaker.Design and configuration are strictly accordances with the requirements of “Technical Specification for Photovoltaic Confluence Equipment” CGC/GF 037:2014. Provide users with security, concise, beautiful, and suitable photovoltaic system products. The product is wall-mounted and can be adapted to a variety of harsh environments. In addition to the relevant core components. Others can be customized according to user requirements.

  • Use special photovoltaic DC surge protector.
  • Use special photovoltaic DC circuit breaker, rated voltage can reach DC 1500V
  • IP 65 protection. Waterproof, dust and UV protection
  • Applicable to wide area. Strict high and low-temperature testing
  • Easy installation. Simple system wiring, easy to wire
  • Box is metal material, like cold-rolled steel
