LEVER - Model CY-ZJ01 -Solar Ground Racking System

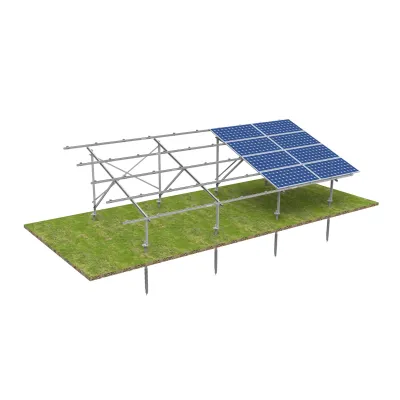

CY-ZJ01 is a ground-based fixed-angle solar mounting system designed to adapt to various geological conditions. Customers have the flexibility to select from grounding screw piles, rammed posts, or concrete beams as the foundations for their setup. The core material used in this system is C-shaped hot-dip galvanized steel with a coating thickness ranging from 60 to 80 micrometers. This high-quality material ensures long-lasting durability and excellent anti-corrosion properties. Additionally, the system is designed to withstand wind loads up to 60 meters per second and snow loads up to 2.0 kN/m², adhering to international standards like ASCE7-10, EN 1990:2002/A1:2005 Eurocode, and AS 1170. CY Solar provides a 15-year warranty for this racking system, with an expected service life of up to 30 years. The system is versatile, supporting adjustable tilt angles from 0 to 60 degrees and customizable panel arrays. It is suitable for various soil types, including clay, sand, silt, and gravel, and is built using HDG steel, anodized aluminum, and Zn-Al-Mg coated steel.
CY-ZJ01 is a fixed angle solar mounting system for ground. According to different geological conditions, the customers can choose Grounding screw pile, rammed post and concrete beams as the system foundations. The mainly material of this solar mounting is C shape hot deep galvanized steel, with thickness of galvanize 60~80μm . The high quality material provide the racking system a long lasting durability and good anti-corrosion. CY Solar offers 15 years warranty and 30 years services life.
- Installation site : Ground
- Soil type : Clay, sand, silt, gravel
- Material : HDG steel, Anodized Aluminum, Zn-Al-Mg coated Steel
- Foundation : Concrete foundation, Rammed post, ground screw pile
- Tilt angle : 0~60 degrees
- Panel array : Customized
- Wind load : Up to 60m/s
- Snow load : Up to 2.0KN/M2
- Standards : ASCE7-10; EN 1990:2002/A1:2005 Eurocode;AS 1170
- Warranty : 15 years
