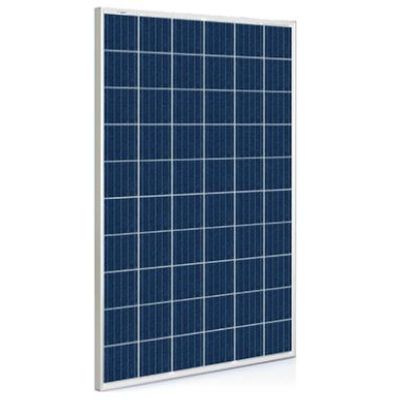

SIMAX - Model 158 SP660 (270W-285W) -Solar Modules

The SIMAX 158 SP660 series is a line of high-performance solar modules available in power outputs ranging from 270W to 285W, designed to meet the demanding needs of photovoltaic systems. These modules feature monocrystalline silicon cells with a dimension of 156.75x156.75 mm and offer a maximum efficiency of up to 17.11%. They are constructed with tempered glass and anodized aluminum frames to ensure durability. The modules are characterized by an open-circuit voltage of 38.3V and varying maximum power currents between 7.05A to 8.65A. They provide a positive power tolerance of 0 to +5% and are backed by a 25-year linear performance warranty and a 12-year warranty on materials and workmanship. Key technical aspects include a nominal operating cell temperature of 45±2°C, with temperature coefficients of 0.42%/°C for power, 0.35%/°C for voltage, and 0.006%/°C for current. These solar modules are designed to deliver reliable and efficient performance for sustainable energy solutions.
