Isotec - Model Isobeam H -Solar Mounting System

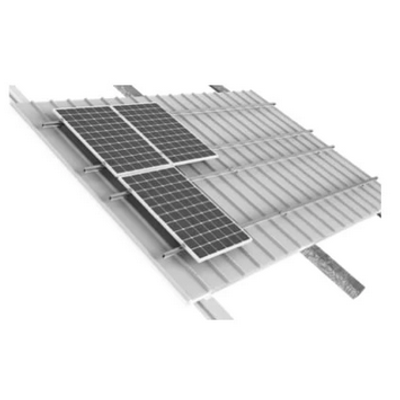

ISOBEAM H solar mounting system used as a full-length rail 3,4 and 5 rib trapezoidal and sandwich coated It is applied on roofs to be mounted on purlins or beams. Used in horizontal or vertical placement ©ISOBEAM H mounting system is manufactured from high-strength aluminum 6063 T66 alloy. BUP roof covering with fasteners Stainless stud screws opposite to the direction of the pitch and saddle from the top of the pitch applied with.
©BUP from the inside of the apparatus Possibility to adjust 5cm and machine bite can enter any area, has been designed in such a way that With the stud + ©BUP + mounting rail, the solar power plant that you will apply can be lifted up to 20 cm from the roof covering. In this way, much better air circulation and production increases of up to %5 in power plant production performance can be created.
Four different heights In addition to being an economical solution with its option, it is long-lasting and covered by a 12-year ISOTEC warranty.
©ISOBEAM mounting system is designed and manufactured based on the snow, wind and earthquake loads specified in EUROCODE standards.
Supplied pre-assembled and can be attached to the mounting rails from the top ©EasyClamp V.1.3 middle clamp & ©EasyClamp V.1.3 edge clamp setleri turn sistemlerimiz ile uyumlu olmakla biriikte giines panel montaj siirecinde %25`e kadar hizli kurulum avantaji saglamaktadir.
It brings an additional load of 1.4 - 2.4 kg to 1 square meter roof area and is among our lightest mounting systems.
- Usage area: Trapezoid roof, sandwich roofs
- Compatible solar panel sizes: L: 1550- 2450mm / W: 950 - 1200mm / H: 35 - 45mm
- Fixing to roof purlins: Concrete, Steel or Wood stud
- Raw materials used: - Rails: AL 6063-T66 / Clamps: AL 6005-T6 Gaskets: EPDM Rubber / Fasteners : Stainless A2-70 & Bimetal
- Technicial Specifications: This application can be used in case the pitch range is maximum 25cm and in horizontal placement
- Length options: 1050-6050mm Height options: 30 - 45 - 60 - 85mm
