Sunway - Model 800V LS -Solar Power Station

FromEnertronica Santerno S.p.A.

SHARE

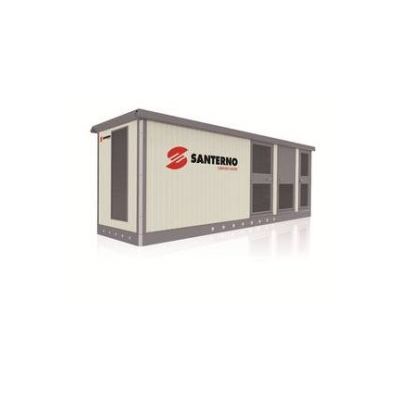

The compact, turnkey solution with rated output power range from 478 kVA to 936 kVA. SUNWAY Station LS is the range-leader packaged solution by Elettronica Santerno, especially designed for extreme working conditions: intense solar radiation, dusty environment, high temperatures. The SUNWAY Station LS substations consist of three separate cabinets (inverter cabinet, LV/MV transformer cabinet and MV boards cabinet) and are manufactured to ensure an IP33 protection degree. The overall dimensions of the substation, which is only 2400 mm wide, fi t for standard transportation and do not require special permits.

Most popular related searches

reactive power controller

solar power plant

voltage control

voltage controller

distribution transformer

solar radiation

Based on 1 or 2 SUNWAY TG 800V TE or TG 1000V TE solar inverters.
Pre-assembled substations, fully fi tted out and tested to reduce the plant costs to a minimum, ensuring easy laying and wiring.
Built with sandwich sheet panels and integrated vibrated reinforced concrete foundations for easy transport.
High effi ciency MV distribution transformer.
Extended confi gurability of the MV section to adapt to any specific plant requirement.
Full access to inverters and accessories for optimum reliability and serviceability thanks to removable lateral walls.
Grid Code integrated features (LVRT, Reactive Power Control, Frequency and Voltage control) in compliance with the most advanced European, North American and WW standards.
Integrated DC-side protection provided by DC fuses and disconnect switch with release coil.
Integrated AC and DC Ground Fault Detection systems and miswiring protection on DC side.
Integrated Modbus on RS485 and TCP/IP on Ethernet data connection.

Rated DC input power: 520 800V LS 492 kW | 620 800V LS 608 kW | 820 800V LS 772 kW | 1020 800V LS 964 kW
PV field voltage range: 415 ÷ 760 V | 476 ÷ 760 V
Max. Open-circuit voltage: 880 V
Max number of DC inputs with fuses (pos+neg): 2x (10 + 10) | 2x (16 + 16)
Rated power: 520 800V LS 477.2 kVA @40°C | 620 800V LS 589.2 kVA @40°C | 820 800V LS 748.6 kVA @40°C | 1020 800V LS 935.6 kVA @50°C
Rated AC output current: 520 800V LS 1020.6 A | 620 800V LS 1259.8 A | 820 800V LS 1600.6 A | 1020 800V LS 2000.8 A
Rated grid frequency: 50 Hz / 60 Hz
Grid Voltage Range: 10 to 22 kV (6 to 36 kV on request)
Max Efficiency: 520 800V LS 98.4 % | 620 800V LS 98.4 % | 820 800V LS 98.4 % | 1020 800V LS 98.5 %
Operating temperature range: -10 ÷ 40 °C | 14 ÷ 104 °F
Degree of protection: IP33
Cooling system: Forced air ventilation
EMC and EMI standards: IEC 61000-6-4, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-1
Grid Harmonic standards: IEC 61000-3-2, IEC 61000-3-12
Grid standard: CEI 0-16, BDEW, Arrêté du 23 Avril 2008, RD 1699/2011, RD 661/2007, CQC, IEEE 1547
