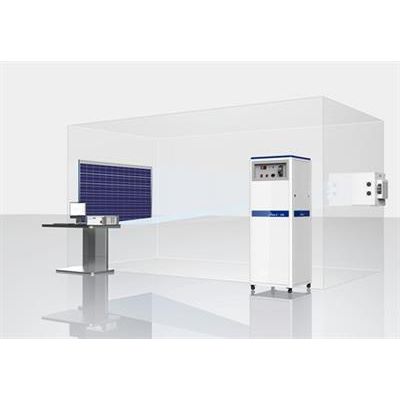

Gsolar - Model GIV-1A/2A (IEC A+A+A+) -Solar Simulator
A+A+A+ solar simulator, the performance is twice better than the international standard (IEC60904-9). Spectrum range: 300nm-400nm.
Most popular related searches
Model: GIV-1A
- Max. illuminated area: 2000x2000mm
- Type of lamp: Xenon
- Lifetime of lamp: ≥10000
- Range of light intensity: 700-1200W/㎡
- Spectral irradiance distribution: 0.75-1.25 (A)
- Long temporal instability (IEC 660904-9): <2% (A)
- Non-uniformity of irradiance: <2% (A)
- Repeated accuracy: ＜1%
- Measurement range: voltage 1V/10V/50V/100V/200V
- current 0.25A/1A/2.5A/10A/20A
- Pulse width: 10ms
- Type of measurement: Single flash
- Power supply: 220V±10%，10A，50HZ
- Dimensions(LxWxH): 6000×2500×2500mm
Model: GIV-2A
- Max. illuminated area: 2000x2000mm
- Type of lamp: Xenon
- Lifetime of lamp: ≥10000
- Range of light intensity: 700-1200W/㎡
- Spectral irradiance distribution: 0.875-1.125 (A+)
- Long temporal instability (IEC 660904-9): <1% (A+)
- Non-uniformity of irradiance: <1% (A+)
- Repeated accuracy: ＜1%
- Measurement range: voltage 1V/10V/50V/100V/200V
- current 0.25A/1A/2.5A/10A/20A
- Pulse width: 10ms
- Type of measurement: Single flash
- Power supply: 220V±10%，10A，50HZ
- Dimensions: 6000×2500×2500mm
