Dinamic - Model 2.0 - Solar Thermodynamic System
The “solar thermal” combines two environmentally friendly technologies: the heat pump and the solar thermal collector. Thanks to the physical pattern identical to the one of a normal solar thermal system and to heat pump components, solar thermodynamic represents the new technology frontier for heating water (up to 60 ° C), saving up to 85% from traditional systems, in an environmental friendly manner without damaging the environment.
Dinamic2.0

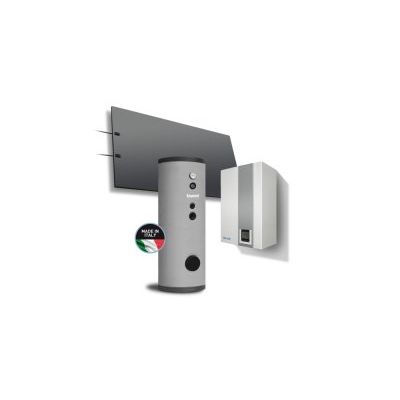

The system consists of a heat pump (DHP2.0) that is installed togegher with solar collector (DCS2.0) and the tank (DVT2.0) which can be 150, 200 or 300 liters, depending on the different needs of hot water storage.

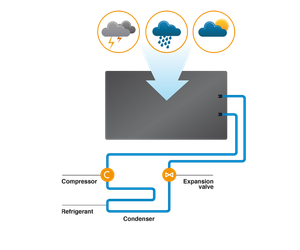

During this process, the fluid warms in a more simple way compared to a heat pump.
After this phase, the heat is transferred to a heat exchanger trough a small compressor that heats the water.
The fluid cools down by transferring the heat and the circuit begins again.
Since the cooling fluid boils at about -30 ºC, the system works without sunshine and even at night, providing hot water at 60 ° C, 24 hours a day, contrary to a traditional solar thermal system.
Dinamic2.0 is a system that allows to have domestic hot water with very low energy consumption, thanks to an high efficiency compressor and most of all to the heat exchange process.

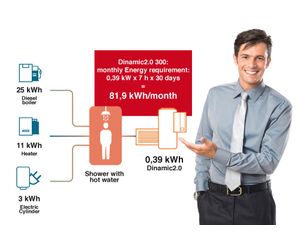

For example, Dinamic 2.0 300, working 7 hours a day, consume 81.9 kW / h monthly, compared to conventional water heating systems, you obtain a saving of up to ‘85%.
-
The thermodynamic heat pump DHP2.0
-
The thermodynamic solar collector DCS2.0
-
The thermodynamic tank DVT2.0
