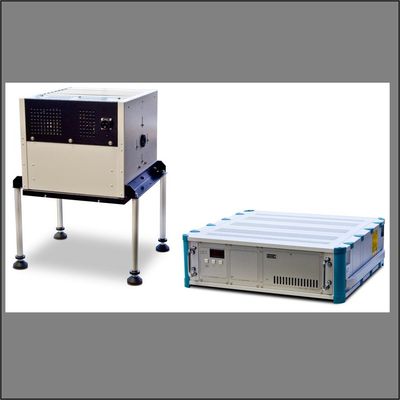

Solartest - Model 1200 -Benchtop Solar Simulator for PV Solar Cell

The SolarTest 1200 is a small benchtop test unit to simulate global radiation of AM 1.5. It can irradiate an exposed area of either 150 mm x 150 mm with a uniformity of ±3 % up to 200 mm x 200 mm area with a uniformity of ±5 %.

• Radiation source: MHG 1200 W lamp, Borosilicate ODF outdoor daylight filter
• Lamp power: 1,200 W (nominal), square wave
• Colour temperature: 5,600 K (±150 K)
• Average lifetime: 750 h / 1,500 ignitions
• Filter system: Borosilicate daylight filter, cut-on
• Uniformity: 150 mm x 150 mm, ≤ ±3 %, 200 mm x 200 mm, ≤ ±5 %
• Irradiance: Approx. 1,050 W/m² at a distance of 340 mm from the lower edge of the luminaire
• Spectral distribution: 280 nm – 3,000 nm,
• Similar to the Global Radiation: CIE 85 (Table 4)
• Dimensions (W x D x H): 450 x 450 x 450 mm
• Weight: 8 kg
