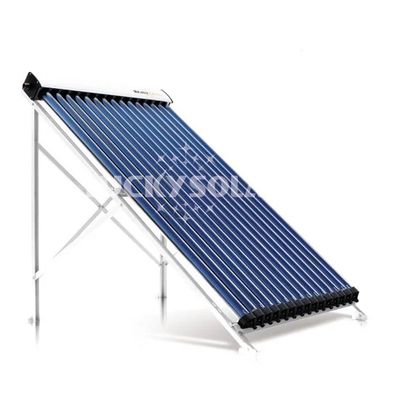

LUCKYSOLAR - Model JXSPC-58/1800-25 -Standard Heat Pipe Solar Collectors
Standard Heat Pipe Solar Collectors General Information -JXSC-Serial. Characteristic; Adopts red copper channel, with great performance of heat exchange. Utilize copper heat pipes containing special medium liquid with low boiling point. Work well in all climate, can be function well even in ambient temperature of minus 30 degree Celsius. Each heat pipe tube works independent and efficiently. No water flows inside the vacuum tube, no risk of freezing. Withstand high water pressure of up to 1.2 Mpa.
- Manifold: Aluminum alloy
- Channel: Red copper
- Heat pipe: Copper
- Bracket: Aluminum alloy/ Galvanized steel/ Stainless steel
- Insulation material: Rock wool
Three-target vacuum tube performance and specification:
- Tube structure : All-glass double deck co-axial structure
- Glass material : High borosilicate 3.3 glass
- Outer tube diameter and glass thickness : Ø58±0.7mm;Glass thickness 1.6±0.15mm
- Inner tube diameter and glass thickness : Ø47±0.7mm;Glass thickness 1.6±0.15mm
Tube dimension: 58*1800mm
Hail resistance : Ø25mm
Pressure-endure : 1MPa
Heat pipe performance and specification:
- Heat pipe material
- TU1 copper
- Heat pipe size
- Top:Ø14mm
- Heat-transfer-find
- Double Aluminum fins with 1630mm.standard models
- Heat transfer fluid
- Pure water
Manifold performance and specification:
- Manifold header pipe
- TP2 copper
- Manifold casing
- Anodized aluminum alloy
Bracket performance and specification:
- Bracket: Stronger galvanized steel,Al-alloy or stainless steel,optional
- Bracket angle: 22,38,45 flat roof optional.
- Fastening pieces: Made of hot-galvanized coated stainless steel screw
Tuber holder material:
- UV stabilized nylon
- Seal
- Silicon seals
